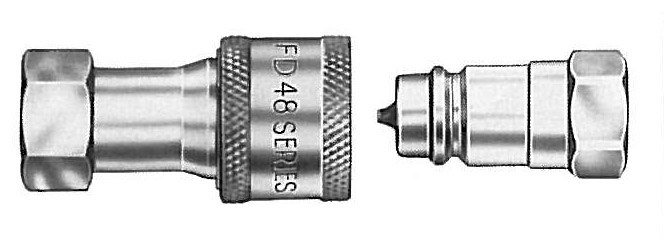

Aeroquip FD48 Series/ Parker Bruning - SM Interchange

FD48 Series Parker

The FD48 Series coupling is designed to interchange with Parker Bruning SM-250 couplings.- Self-sealing poppet valves provide excellent high and low pressure sealing.
- PUSH-PULL? ball latch design allows quick and easy connection and disconnection of fluid lines.
- Heat-treated and plated steel for wear and corrosion resistance.
- 3000 psi operating pressure.
- Standard seal material - Buna-N.
- Standard body material - Zinc plated steel with zinc poppet guides.

FD48-1002-04-04 -04 , 1/4-18 1.45 N/A .75 inches Male Half - Female Pipe/Valved

FD48-1001-04-04 -04 , 1/4-18 2.01 1.06 .81 inches Female Half - Female Pipe/Valved

FD48-1000-04-04 -04, 1/4-18 2.69 N/A N/A Complete Coupling - Female Pipe/Valved

FD48-1042-04 -04 , N/A N/A N/A N/A Dust Cap/Plug - Fits both male & female halves
