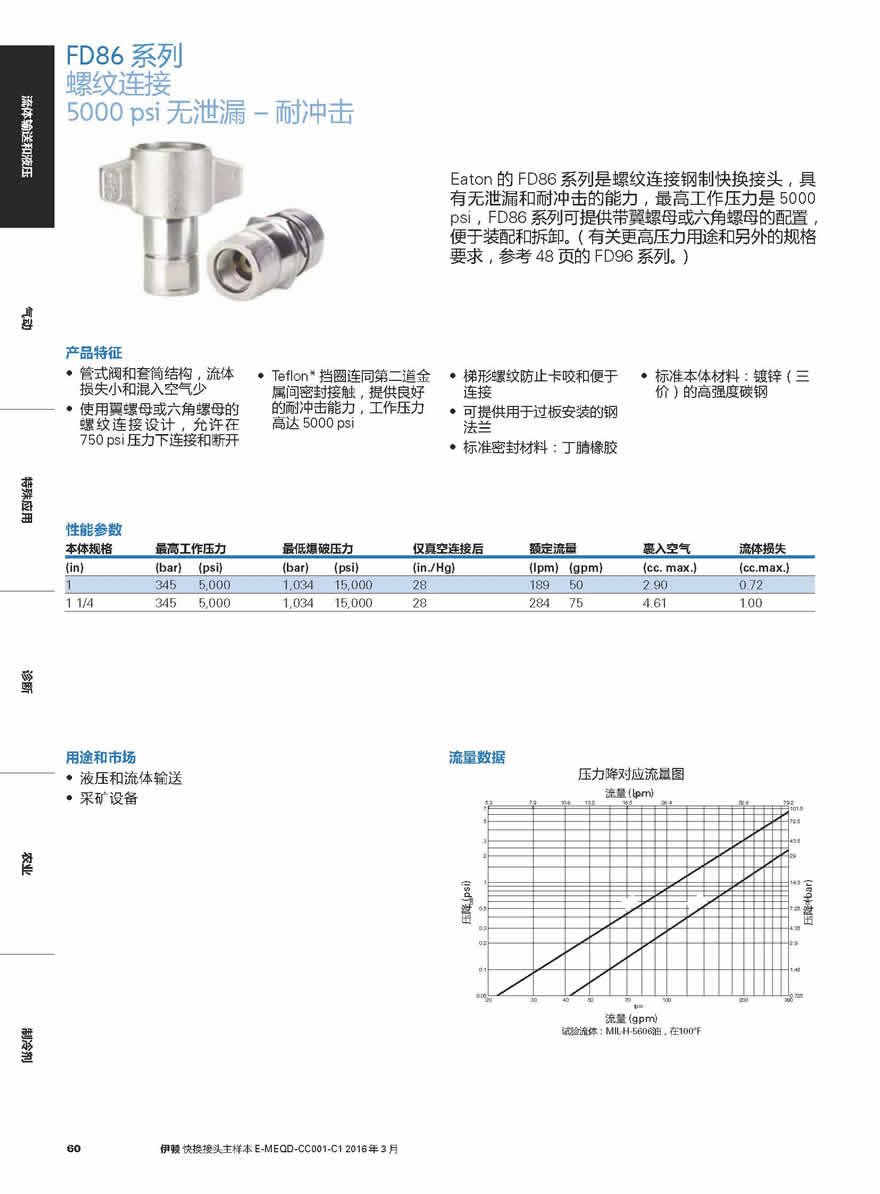

FD86系列螺纹连接 5000 psi 无泄漏 – 耐冲击
FD86 Series Thread to Connect 5,000 psi Dry Break – High Impulse

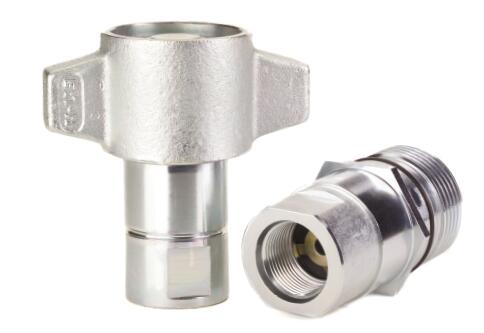

Eaton的 FD86系列是螺纹连接钢制快换接头，具有无泄漏和耐冲击的能力，最高工作压力是 5000 psi，FD86系列可提供带翼螺母或六角螺母的配置，便于装配和拆卸。（有关更高压力用途和另外的规格要求，参考 48页的 FD96系列。）Eaton’s FD86 Series is a thread together steel quick coupling offering dry break and high impulse technology and capabilities. The maximum operating pressure is 5,000 psi. The FD86 Series is available in either wing nut or hex nut configurations for ease of assembly and disassembly. (For higher pressure applications and additional size requirements, refer to FD96 on page 44.)
产品特征
- 管式阀和套筒结构，流体
- Teflon* 挡圈连同第二道金
- 梯形螺纹防止卡咬和便于
- 标准本体材料：镀锌（三损失小和混入空气少 属间密封接触，提供良好连接 价）的高强度碳钢
- 使用翼螺母或六角螺母的的耐冲击能力，工作压力
- 可提供用于过板安装的钢螺纹连接设计，允许在 高达 5000 psi 法兰 750 psi 压力下连接和断开
- 标准密封材料：丁腈橡胶
用途和市场
- 液压和流体输送
- 采矿设备
AEROQUIP FD86 Series Thread to Connect 5,000 psi Dry Break – High Impulse

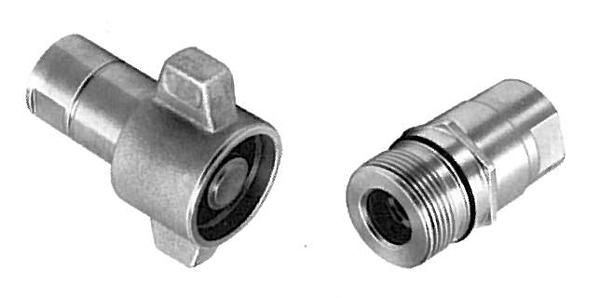

The FD86 Series is a thread together steel quick coupling offering dry break and high impulse technology and capabilities. The maximum operating pressure is 5,000 psi. The FD86 Series is available in either wing nut or hex nut configurations
for ease of assembly and disassembly. (For higher pressure applications and additional size requirements, refer to FD96 on page 42.)
The FD86 is a thread together steel coupling offering dry break and high impulse technology and capabilities. The maximum operating pressure is 5,000 psi.- Tubular valve and sleeve construction for low fluid loss and air inclusion.
- Thread together design using wing or hex nut allows connection and disconnection against pressures up to 750 psi.
- Teflon back uop rings along with secondary metal-to-metal sealing contact provides high impulse capability up to 5,000 psi operating pressure.
- Acme threads prevent galling and provide ease of connection.
- Metal-to-metal sealing withstands +2000oF for ten minutes with no fluid loss (requirement in California for oil field blow-out preventers).
- Steel flange available for bulkhead mounting.
- Standard seal material - Buna-N.
- Standard body material - Zinc plated steel.
- Teflon is a registered trademark of Dupont.
Item # |
Coupling Size |
Thread Size (P) |
Seal Material |
Type |
| FD86-1008-16-16 |
-16 |
1-5/16-12 |
BUNA-N |
Male Half - Female SAE O-Ring |
| FD86-1008-20-20 |
-20 |
1-5/8-12 |
BUNA-N |
Male Half - Female SAE O-Ring |
| FD86-1043-16-16 |
-16 |
1-5/16-12 |
Viton |
Male Half - Female SAE O-Ring |
| FD86-1043-20-20 |
-20 |
1-5/8-12 |
Viton |
Male Half - Female SAE O-Ring |
| FD86-1053-16-16 |
-16 |
1-5/16-12 |
EPR |
Male Half - Female SAE O-Ring |
| FD86-1053-20-20 |
-20 |
1-5/8-12 |
EPR |
Male Half - Female SAE O-Ring |
| FD86-1010-16-16 |
-16 |
1-5/16-12 |
BUNA-N |
Female Half - Female SAE O-Ring/With Wing Nut |
| FD86-1010-20-20 |
-20 |
1-5/8-12 |
BUNA-N |
Female Half - Female SAE O-Ring/With Wing Nut |
| FD86-1044-16-16 |
-16 |
1-5/16-12 |
Viton |
Female Half - Female SAE O-Ring/With Wing Nut |
| FD86-1044-20-20 |
-20 |
1-5/8-12 |
Viton |
Female Half - Female SAE O-Ring/With Wing Nut |
| FD86-1054-16-16 |
-16 |
1-5/16-12 |
EPR |
Female Half - Female SAE O-Ring/With Wing Nut |
| FD86-1054-20-20 |
-20 |
1-5/8-12 |
EPR |
Female Half - Female SAE O-Ring/With Wing Nut |
| FD86-1006-16-16 |
-16 |
1-5/16-12 |
BUNA-N |
Female Half - Female SAE O-Ring/With Hex Nut |
| FD86-1006-20-20 |
-20 |
1-5/8-12 |
BUNA-N |
Female Half - Female SAE O-Ring/With Hex Nut |
| FD86-1042-16-16 |
-16 |
1-5/16-12 |
Viton |
Female Half - Female SAE O-Ring/With Hex Nut |
| FD86-1042-20-20 |
-20 |
1-5/8-12 |
Viton |
Female Half - Female SAE O-Ring/With Hex Nut |
| FD86-1052-16-16 |
-16 |
1-5/16-12 |
EPR |
Female Half - Female SAE O-Ring/With Hex Nut |
| FD86-1052-20-20 |
-20 |
1-5/8-12 |
EPR |
Female Half - Female SAE O-Ring/With Hex Nut |
| FD86-1002-16-16 |
-16 |
1-11-1/2 |
BUNA-N |
Male Half - Female NPTF |
| FD86-1002-20-20 |
-20 |
1-1/4 to 11-1/2 |
BUNA-N |
Male Half - Female NPTF |
| FD86-1040-16-16 |
-16 |
1-11-1/2 |
Viton |
Male Half - Female NPTF |
| FD86-1040-20-20 |
-20 |
1-1/4 to 11-1/2 |
Viton |
Male Half - Female NPTF |
| FD86-1050-16-16 |
-16 |
1-11-1/2 |
EPR |
Male Half - Female NPTF |
| FD86-1050-20-20 |
-20 |
1-1/4 to 11-1/2 |
EPR |
Male Half - Female NPTF |
| FD86-1001-16-16 |
-16 |
1-11-1/2 |
BUNA-N |
Female Half - Female NPTF/With Wing Nut |
| FD86-1001-20-20 |
-20 |
1-1/4 to 11-1/2 |
BUNA-N |
Female Half - Female NPTF/With Wing Nut |
| FD86-1039-16-16 |
-16 |
1-11-1/2 |
Viton |
Female Half - Female NPTF/With Wing Nut |
| FD86-1039-20-20 |
-20 |
1-1/4 to 11-1/2 |
Viton |
Female Half - Female NPTF/With Wing Nut |
| FD86-1049-16-16 |
-16 |
1-11-1/2 |
EPR |
Female Half - Female NPTF/With Wing Nut |
| FD86-1049-20-20 |
-20 |
1-1/4 to 11-1/2 |
EPR |
Female Half - Female NPTF/With Wing Nut |
| FD86-1004-16-16 |
-16 |
1-11-1/2 |
BUNA-N |
Female Half - Female NPTF/With Hex Nut |
| FD86-1004-20-20 |
-20 |
1-1/4 to 11-1/2 |
BUNA-N |
Female Half - Female NPTF/With Hex Nut |
| FD86-1041-16-16 |
-16 |
1-11-1/2 |
Viton |
Female Half - Female NPTF/With Hex Nut |
| FD86-1041-20-20 |
-20 |
1-1/4 to 11-1/2 |
Viton |
Female Half - Female NPTF/With Hex Nut |
| FD86-1051-16-16 |
-16 |
1-11-1/2 |
EPR |
Female Half - Female NPTF/With Hex Nut |
| FD86-1051-20-20 |
-20 |
1-1/4 to 11-1/2 |
EPR |
Female Half - Female NPTF/With Hex Nut |
| FF10596-16 |
-16 |
N/AN/AN/AN/ABUNA-N |
|
|
| FF10596-20 |
-20 |
N/AN/AN/AN/ABUNA-N |
|
|
| FF10597-16 |
-16 |
N/AN/AN/AN/AViton |
|
|
| FF10597-20 |
-20 |
N/AN/AN/AN/AViton |
|
|
| FF10598-16 |
-16 |
N/AN/AN/AN/AEPR |
|
|
| FF10598-20 |
-20 |
N/AN/AN/AN/AEPR |
|
|
| FF10593-16 |
-16 |
N/AN/AN/AN/ABUNA-N |
|
|
| FF10593-20 |
-20 |
N/AN/AN/AN/ABUNA-N |
|
|
| FF10594-16 |
-16 |
N/AN/AN/AN/AViton |
|
|
| FF10594-20 |
-20 |
N/AN/AN/AN/AViton |
|
|
| FF10595-16 |
-16 |
N/AN/AN/AN/AEPR |
|
|
| FF10595-20 |
-20 |
N/AN/AN/AN/AEPR |
|
|
| FD86-1018-16 |
-16 |
N/AN/AN/AN/AN/ADust Cap with Chain |
|
|
| FD86-1018-20 |
-20 |
N/AN/AN/AN/AN/ADust Cap with Chain |
|
|
| D86-1016-16 |
-16 |
N/AN/AN/AN/AN/ADust Plug with Chain |
|
|
| FD86-1016-20 |
-20 |
N/AN/AN/AN/AN/ADust Plug with Chain |
|
|
| FD86-1035-16 |
-16 |
N/A0.19 |
|
|
| FD86-1035-20 |
-20 |
N/A0.19 |
|
|
EATON Quick Disconnect Couplings Part Number
FD86-1010-16-16 FD86-1044-16-16 FD86-1054-16-16 Female
FD86-1008-20-20 FD86-1043-20-20 FD86-1053-20-20 Male
FD86-1006-20-20 FD86-1042-20-20 FD86-1052-20-20 Female
FD86-1001-16-16 FD86-1039-16-16 FD86-1049-16-16 Female
FD86-1002-20-20 FD86-1040-20-20 FD86-1050-20-20 Male
FD86-1004-20-20 FD86-1041-20-20 FD86-1051-20-20 Female
|
