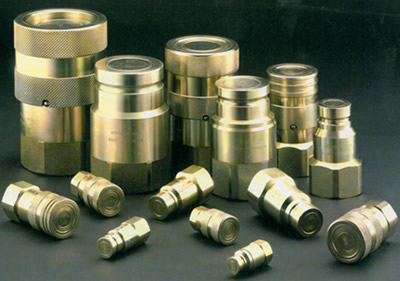

DANFOSS Hansen Aeroquip FD89 Series/ Flush Face Couplings
丹佛斯 FD89系列 平面快速接头


Aeroquip液压快速断开快速接头 Eaton的新型FD89系列专为那些需要快速，轻松连接和无泄漏性能的应用而设计。 非常适合与其他制造商实现全球互换性的场合。 FD89系列的尺寸从1/4到2不等。 Eaton's NEW FD89 Series is specifically designed for those applications where quick and easy connections and no-spill performance are essential. Ideal for use where global interchangeability with other manufaturers is important. The FD89 Series is available in sizes from 1/4" through 2" to best meet your specific size requirements.- Meets dimensional requirements of ISO 16028 (1/4"-1-1/4").

产品详情
Aeroquip液压快速断开快速接头

Eaton的新型FD89系列专为那些需要快速，轻松连接和无泄漏性能的应用而设计。非常适合与其他制造商实现全球互换性的场合。FD89系列的尺寸从1/4“到2”不等，最能满足您的特定尺寸要求。-符合ISO 16028（1/4“ -1-1 / 4”）的尺寸要求。
-推连接闩锁。
-双重冲洗阀。
-安全套锁。
-可与HTMA快速接头（3/8“）互换。
- Push-to-Connect Latching.
- Dual Flush-Face Valving.
- Safety Sleeve Lock.
- Interchangeable with HTMA couplings (3/8").






Aeroquip Hydraulic Quick Disconnect Couplings






Item #
Coupling Size
Thread Size (P)
Seal Material
Type
FD89-1002-04-01
-4
1/4-18
1.89
 　
FD89-1002-06-06
-6
3/8-18
2.36
 　
FD89-1002-08-06
-6
1/2-14
2.46
 　
FD89-1002-08-08
-8
1/2-14
2.68
 　
FD89-1002-12-08
-8
3/4-14
2.78
 　
FD89-1002-12-12
-12
3/4-14
2.78
 　
FD89-1002-16-16
-16
1-11-1/2
3.24
 　
FD89-1002-20-20
-20
1-1/4 to 11-1/2
3.54
 　
FD89-1002-24-24
-24
1-1/2 to 11-1/2
4.37
 　
FD89-1002-32-32
-32
2-11-1/2
4.87
 　
FD89-1001-04-04
-4
1/4-18
1.89
N/A N/A Female Half - Female Pipe/Valved
FD89-1001-06-06
-6
3/8-18
2.53
N/A N/A Female Half - Female Pipe/Valved
FD89-1001-08-06
-6
1/2-14
2.72
N/A N/A Female Half - Female Pipe/Valved
FD89-1001-08-08
-8
1/2-14
2.91
N/A N/A Female Half - Female Pipe/Valved
FD89-1001-12-08
-8
3/4-14
3.18
N/A N/A Female Half - Female Pipe/Valved
FD89-1001-12-12
-12
3/4-14
3.09
N/A N/A Female Half - Female Pipe/Valved
FD89-1001-16-16
-16
1-11-1/2
3.67
N/A N/A Female Half - Female Pipe/Valved
FD89-1001-20-20
-20
1-1/4 to 11-1/2
4.17
N/A N/A Female Half - Female Pipe/Valved
FD89-1001-24-24
-24
1-1/2 to 11-1/2
5.21
N/A N/A Female Half - Female Pipe/Valved
FD89-1001-32-32
-32
2-11-1/2
6.17
N/A N/A Female Half - Female Pipe/Valved
FD89-1007-04-04
-4
G 1/4
1.89
Female BSP/Valved
FD89-1007-06-06
-6
G 3/8
2.36
Female BSP/Valved
FD89-1007-08-06
-6
G 1/2
2.46
Female BSP/Valved
FD89-1007-08-08
-8
G 1/2
2.68
Female BSP/Valved
FD89-1007-12-08
-8
G 3/4
2.78
Female BSP/Valved
FD89-1007-12-12
-12
G 3/4
2.78
Female BSP/Valved
FD89-1007-16-16
-16
G 1
3.24
Female BSP/Valved
FD89-1007-20-20
-20
G 1-1/4
3.54
Female BSP/Valved
FD89-1007-24-24
-24
G 1-1/2
4.37
Female BSP/Valved
FD89-1007-32-32
-32
G 2
4.87
Female BSP/Valved
FD89-1006-04-04
-4
G 1/4
1.89
N/A N/A Female Half - Female BSP/Valved
FD89-1006-06-06
-6
G 3/8
2.53
N/A N/A Female Half - Female BSP/Valved
FD89-1006-08-06
-6
G 1/2
2.72
N/A N/A Female Half - Female BSP/Valved
FD89-1006-08-08
-8
G 1/2
2.91
N/A N/A Female Half - Female BSP/Valved
FD89-1006-12-08
-8
G 3/4
3.18
N/A N/A Female Half - Female BSP/Valved
FD89-1006-12-12
-12
G 3/4
3.09
N/A N/A Female Half - Female BSP/Valved
FD89-1006-16-16
-16
G 1
3.67
N/A N/A Female Half - Female BSP/Valved
FD89-1006-20-20
-20
G 1-1/4
4.17
N/A N/A Female Half - Female BSP/Valved
FD89-1006-24-24
-24
G 1-1/2
5.21
N/A N/A Female Half - Female BSP/Valved
FD89-1006-32-32
-32
G 2
6.17
N/A N/A Female Half - Female BSP/Valved
FD89-1004-06-04
-4
9/16-18
2
 　
FD89-1004-08-06
-6
3/4-16
2.46
 　
FD89-1004-10-06
-6
7/8-14
2.52
 　
FD89-1004-10-08
-8
7/8-14
2.76
 　
FD89-1004-12-08
-8
11/16-12
2.83
 　
FD89-1004-12-12
-12
11/16-12
2.83
 　
FD89-1004-16-16
-16
15/16-12
3.24
 　
FD89-1004-20-20
-20
1-5/8-12
3.54
 　
FD89-1004-24-24
-24
1-7/8-12
4.37
 　
FD89-1004-32-32
-32
2-1/2-12
4.87
 　
FD89-1005-06-04
-4
9/16-18
2.09
N/A N/A Female Half - Female SAE O-ring/Valved
FD89-1005-08-06
-6
3/4-16
2.72
N/A N/A Female Half - Female SAE O-ring/Valved
FD89-1005-10-06
-6
7/8-14
2.8
N/A N/A Female Half - Female SAE O-ring/Valved
FD89-1005-10-08
-8
7/8-14
3
N/A N/A Female Half - Female SAE O-ring/Valved
FD89-1005-12-08
-8
11/16-12
3.28
N/A N/A Female Half - Female SAE O-ring/Valved
FD89-1005-12-12
-12
11/16-12
3.29
N/A N/A Female Half - Female SAE O-ring/Valved
FD89-1005-16-16
-16
15/16-12
3.67
N/A N/A Female Half - Female SAE O-ring/Valved
FD89-1005-20-20
-20
1-5/8-12
4.17
N/A N/A Female Half - Female SAE O-ring/Valved
FD89-1005-24-24
-24
1-7/8-12
5.21
N/A N/A Female Half - Female SAE O-ring/Valved
FD89-1005-32-32
-32
2-1/2-12
6.16
N/A N/A Female Half - Female SAE O-ring/Valved
FD89-1009-04
-4
N/A 1.26
1.5
Female Half - Dust Cap PVC
FD89-1009-06
-6
N/A 1.42
1.69
Female Half - Dust Cap PVC
FD89-1009-08-08
-08-08
N/A 1.65
1.81
Female Half - Dust Cap PVC
FD89-1009-12-08
-12-08
N/A 1.65
1.81
Female Half - Dust Cap PVC
FD89-1009-12
-12
N/A 1.81
1.97
Female Half - Dust Cap PVC
FD89-1009-16
-16
N/A 2.05
2.44
Female Half - Dust Cap PVC
FD89-1009-20
-20
N/A 2.36
2.68
Female Half - Dust Cap PVC
FD89-1009-24
-24
N/A 3.74
1.57
Female Half - Dust Cap Aluminum
FD89-1009-32
-32
N/A 4.53
1.57
Female Half - Dust Cap Aluminum
FD89-1008-04
-4
N/A 1.10
0.91
Male Half - Dust Cap PVC
FD89-1008-06-06
-06-06
N/A 1.26
1.1
Male Half - Dust Cap PVC
FD89-1008-08-06
-08-06
N/A 1.26
1.1
Male Half - Dust Cap PVC
FD89-1008-08-08
-08-08
N/A 1.50
1.22
Male Half - Dust Cap PVC
FD89-1008-12-08
-12-08
N/A 1.50
1.22
Male Half - Dust Cap PVC
FD89-1008-12
-12
N/A 1.65
1.1
Male Half - Dust Cap PVC
FD89-1008-16
-16
N/A 1.89
1.38
Male Half - Dust Cap PVC
FD89-1008-20
-20
N/A 2.17
1.52
Male Half - Dust Cap PVC
FD89-1008-24
-24
N/A 2.76
1.57
Male Half - Dust Cap Aluminum
FD89-1008-32
-32
N/A 3.35
2.05
Male Half - Dust Cap Aluminum

-

项目编号 联轴器尺寸 螺纹尺寸（P） 密封材料 类型
FD89-1002-04-01 -4 2001/4/18 1.89
FD89-1002-06-06 -6 2003/8/18 2.36
FD89-1002-08-06 -6 2001/2/14 2.46
FD89-1002-08-08 -8 2001/2/14 2.68
FD89-1002-12-08 -8 2003/4/14 2.78
FD89-1002-12-12 -12 2003/4/14 2.78
FD89-1002-16-16 -16 1-11-1 / 2 3.24
FD89-1002-20-20 -20 1-1 / 4至11-1 / 2 3.54
FD89-1002-24-24 -24 1-1 / 2至11-1 / 2 4.37
FD89-1002-32-32 -32 2-11-1 / 2 4.87
FD89-1001-04-04 -4 2001/4/18 1.89 N / AN / A母半-母管/带阀门
FD89-1001-06-06 -6 2003/8/18 2.53 N / AN / A母半-母管/带阀门
FD89-1001-08-06 -6 2001/2/14 2.72 N / AN / A母半-母管/带阀门
FD89-1001-08-08 -8 2001/2/14 2.91 N / AN / A母半-母管/带阀门
FD89-1001-12-08 -8 2003/4/14 3.18 N / AN / A母半-母管/带阀门
FD89-1001-12-12 -12 2003/4/14 3.09 N / AN / A母半-母管/带阀门
FD89-1001-16-16 -16 1-11-1 / 2 3.67 N / AN / A母半-母管/带阀门
FD89-1001-20-20 -20 1-1 / 4至11-1 / 2 4.17 N / AN / A母半-母管/带阀门
FD89-1001-24-24 -24 1-1 / 2至11-1 / 2 5.21 N / AN / A母半-母管/带阀门
FD89-1001-32-32 -32 2-11-1 / 2 6.17 N / AN / A母半-母管/带阀门
FD89-1007-04-04 -4 G 1/4 1.89 女BSP /带阀门
FD89-1007-06-06 -6 G 3/8 2.36 女BSP /带阀门
FD89-1007-08-06 -6 G 1/2 2.46 女BSP /带阀门
FD89-1007-08-08 -8 G 1/2 2.68 女BSP /带阀门
FD89-1007-12-08 -8 G 3/4 2.78 女BSP /带阀门
FD89-1007-12-12 -12 G 3/4 2.78 女BSP /带阀门
FD89-1007-16-16 -16 1号 3.24 女BSP /带阀门
FD89-1007-20-20 -20 G 1-1 / 4 3.54 女BSP /带阀门
FD89-1007-24-24 -24 G 1-1 / 2 4.37 女BSP /带阀门
FD89-1007-32-32 -32 G 2 4.87 女BSP /带阀门
FD89-1006-04-04 -4 G 1/4 1.89 N / AN / A母半-母BSP /带阀门
FD89-1006-06-06 -6 G 3/8 2.53 N / AN / A母半-母BSP /带阀门
FD89-1006-08-06 -6 G 1/2 2.72 N / AN / A母半-母BSP /带阀门
FD89-1006-08-08 -8 G 1/2 2.91 N / AN / A母半-母BSP /带阀门
FD89-1006-12-08 -8 G 3/4 3.18 N / AN / A母半-母BSP /带阀门
FD89-1006-12-12 -12 G 3/4 3.09 N / AN / A母半-母BSP /带阀门
FD89-1006-16-16 -16 1号 3.67 N / AN / A母半-母BSP /带阀门
FD89-1006-20-20 -20 G 1-1 / 4 4.17 N / AN / A母半-母BSP /带阀门
FD89-1006-24-24 -24 G 1-1 / 2 5.21 N / AN / A母半-母BSP /带阀门
FD89-1006-32-32 -32 G 2 6.17 N / AN / A母半-母BSP /带阀门
FD89-1004-06-04 -4 9 / 16-18 2
FD89-1004-08-06 -6 2003/4/16 2.46
FD89-1004-10-06 -6 2014年7月8日 2.52
FD89-1004-10-08 -8 2014年7月8日 2.76
FD89-1004-12-08 -8 12 / 16-12 2.83
FD89-1004-12-12 -12 12 / 16-12 2.83
FD89-1004-16-16 -16 15 / 16-12 3.24
FD89-1004-20-20 -20 1-5 / 8-12 3.54
FD89-1004-24-24 -24 1-7 / 8-12 4.37
FD89-1004-32-32 -32 2012/2/2 4.87
FD89-1005-06-04 -4 9 / 16-18 2.09 N / AN / A母半-SAE母O型圈/带阀门
FD89-1005-08-06 -6 2003/4/16 2.72 N / AN / A母半-SAE母O型圈/带阀门
FD89-1005-10-06 -6 2014年7月8日 2.8 N / AN / A母半-SAE母O型圈/带阀门
FD89-1005-10-08 -8 2014年7月8日 3 N / AN / A母半-SAE母O型圈/带阀门
FD89-1005-12-08 -8 12 / 16-12 3.28 N / AN / A母半-SAE母O型圈/带阀门
FD89-1005-12-12 -12 12 / 16-12 3.29 N / AN / A母半-SAE母O型圈/带阀门
FD89-1005-16-16 -16 15 / 16-12 3.67 N / AN / A母半-SAE母O型圈/带阀门
FD89-1005-20-20 -20 1-5 / 8-12 4.17 N / AN / A母半-SAE母O型圈/带阀门
FD89-1005-24-24 -24 1-7 / 8-12 5.21 N / AN / A母半-SAE母O型圈/带阀门
FD89-1005-32-32 -32 2012/2/2 6.16 N / AN / A母半-SAE母O型圈/带阀门
FD89-1009-04 -4 不适用1.26 1.5 女半-防尘帽PVC
FD89-1009-06 -6 不适用1.42 1.69 女半-防尘帽PVC
FD89-1009-08-08 -16 不适用1.65 1.81 女半-防尘帽PVC
FD89-1009-12-08 -20 不适用1.65 1.81 女半-防尘帽PVC
FD89-1009-12 -12 不适用1.81 1.97 女半-防尘帽PVC
FD89-1009-16 -16 不适用2.05 2.44 女半-防尘帽PVC
FD89-1009-20 -20 不适用2.36 2.68 女半-防尘帽PVC
FD89-1009-24 -24 不适用3.74 1.57 母半-防尘盖铝
FD89-1009-32 -32 不适用4.53 1.57 母半-防尘盖铝
FD89-1008-04 -4 不适用1.10 0.91 公半-防尘帽PVC
FD89-1008-06-06 -12 不适用1.26 1.1 公半-防尘帽PVC
FD89-1008-08-06 -14 不适用1.26 1.1 公半-防尘帽PVC
FD89-1008-08-08 -16 不适用1.50 1.22 公半-防尘帽PVC
FD89-1008-12-08 -20 不适用1.50 1.22 公半-防尘帽PVC
FD89-1008-12 -12 不适用1.65 1.1 公半-防尘帽PVC
FD89-1008-16 -16 不适用1.89 1.38 公半-防尘帽PVC
FD89-1008-20 -20 不适用2.17 1.52 公半-防尘帽PVC
FD89-1008-24 -24 不适用2.76 1.57 公半-防尘盖铝
FD89-1008-32 -32 不适用3.35 2.05 公半-防尘盖铝



FD89-1002-04-04公1/4 1/4 1/4-18女NPT 1 47.9（1.88）22（0.86）
FD89-1002-06-06公3/8 3/8 3/8-18女NPT 1 60.0（2.36）24（0.94）
FD89-1002-08-06公头3/8 1/2 1/2-14母NPT 1 62.5（2.46）27（1.06）
FD89-1002-08-08公头1 / 2 1/2 1/
2-14母NPT 1 68.0（2.67）32（1.26）FD89-1002-12-08公1/2/3/4 3/4-14母NPT 1 70.5（2.78）36（1.42）
FD89-1002-12-10公3/4 3/4 3/4-14母NPT 1 70.5（2.78）36（1.42）
FD89-1002-16-12公1 1-1-11 1/2女NPT 1 82.3 （3.24）45（1.77）
FD89-1002-20-16公头1 1/4 1 1/4 1 1/4-11 1/2女NPT 1 89.8（3.54）55（2.17）
FD89-1002-24-24公1 1/2 2 1 1/2-11 1/2女NPT 1 111.1（4.37）65（2.56）
FD89-1007-04-04公1/4 1/4 G 1 / 4
母BSP 1 47.9（1.88）22（0.86）FD89-1007-06-06公3/8 3/8 G 3/8母BSP 1 60.0（2.36）24（0.94）
FD89-1007-08-06公3 / 8 1/2 G 1/2
母BSP 1 62.5（2.46）27（1.06）FD89-1007-08-08公1/2 1/2 G 1/2母BSP 1 68.0（2.67）32（1.26）
FD89 -1007-12-08公1/2 3/4 G 3/4女BSP 1 70.5（2.78）36（1.42）
FD89-1007-12-10公3/4 3/4 G 3/4女BSP 1 70.5 （2.78）36（1.42）
FD89-1007-16-12公头1 1 G 1女BSP 1 82.3（3.24）45（1.77）
FD89-1007-20-16公头1 1/4 1 1/4 G 1 1 / 4女BSP 1 89.9（3.54）55（2.17）
FD89-1007-24-24公1 1/2 1 1/2 G 1 1/2女BSP 1 111.1（4.37）65（2.56）
FD89-1007-32-32公2 2 G 2女BSP 1 123.8（4.87） ）75（2.95）
FD89系列ISO 16028互换
FD89-1004-06-04公1/4 9/16 9/16-18 UNF女SAE O型圈1 50.9（2.00）22（0.86）
FD89-1004-08- 06公头3/8 3/4 3/4-16 UNF女SAE O型圈1 62.5（2.46）27（1.06）
FD89-1004-10-06公头3/8 7/8 7/8-14 UNF女SAE O形圈1 64.0（2.52）30（1.18）
FD89-1004-10-08公1/2/7/8 7/8-14 UNF母SAE O形圈1 70.0（2.76）32（1.26）
FD89-1004- 12-08公1/2/11/16 1 1/16-12 UN女SAE O形圈1 72.0（2.83）36（1.42）
FD89-1004-12-10公3/4 11/16 1 1/16-12 UN女SAE O型圈1 72.0（2.83）36（1.42）
FD89-1004-16-12公1 1 5/16 1 5 /
16-12 UN女用SAE O型圈1 82.3（3.24）45（1.77）FD89-1004-20-16公头1 1/4 1 5/8 1 5/8-12 UN女用SAE O型圈1 89.8（ 3.54）55（2.17）
FD89-1004-24-24公头1 1/2 2 1 7/8-12 UN女SAE O型圈1 111.1（4.37）65（2.56）
FD89-1004-32-32公头2 2 1/2 2 1/
2-12 UN女SAE O型圈1 123.8（4.87）75（2.95）FD89-1008-20公1 1/4 PVC
EATON快速断开接头E-MEQD-MC001-E2
FD89-2000系列
316不锈钢ISO 16028互换
FD89-2002-04-04公1/4 1/4 1 / 4-18女NPT 1 47.9（1.89）22（.87）
FD89-2002-06-06公3/8 3/8 3 / 8-18 NPT
母头1 60.0（2.36）24（.94）FD89-2002-08-08公头1/2 1/2 1 / 2-14 NPT母头1 68.0（2.68）32（1.26）
FD89-2002-12-10公头5/8 3/4 3 / 4-14女NPT 1 70.5（2.78）36（1.42）
FD89-2002-16-12男3/4 1 1-11 1/2女NPT 1 82.2（3.24）46（1.81 ）
FD89-2002-20-16公1 1 1/4 1 1 / 4-11 1/2女NPT 1 90.0（3.54）55（2.17）
FD89-2002-24-24公1 1/2 1 1/2 1 1 / 2-11 1/2女NPT 1 111.0（4.37）70（2.76）
FD89-2002-32-32公2 2 2-11 1/2女NPT 1 123.8（4.87）75（2.95）
FD89-1009 -06女PVC
FD89-1009-12 FD89-1009-20 FD89-1009-32 FD89-1008-06-06
公PVC
FD89-1008-12公PVC
FD89-1008-20公PVC
FD89-1008-32公铝

FD89-1002-04-04 Male 1/4 1/4 1/4 - 18 Female NPT 1 47.9 (1.88) 22 (0.86)
FD89-1002-06-06 Male 3/8 3/8 3/8 - 18 Female NPT 1 60.0 (2.36) 24 (0.94)
FD89-1002-08-06 Male 3/8 1/2 1/2 - 14 Female NPT 1 62.5 (2.46) 27 (1.06)
FD89-1002-08-08 Male 1/2 1/2 1/2 - 14 Female NPT 1 68.0 (2.67) 32 (1.26)
FD89-1002-12-08 Male 1/2 3/4 3/4 - 14 Female NPT 1 70.5 (2.78) 36 (1.42)
FD89-1002-12-10 Male 3/4 3/4 3/4 - 14 Female NPT 1 70.5 (2.78) 36 (1.42)
FD89-1002-16-12 Male 1 1 1 - 11 1/2 Female NPT 1 82.3 (3.24) 45 (1.77)
FD89-1002-20-16 Male 1 1/4 1 1/4 1 1/4 - 11 1/2 Female NPT 1 89.8 (3.54) 55 (2.17)
FD89-1002-24-24 Male 1 1/2 2 1 1/2 - 11 1/2 Female NPT 1 111.1 (4.37) 65 (2.56)
FD89-1007-04-04 Male 1/4 1/4 G 1/4 Female BSP 1 47.9 (1.88) 22 (0.86)
FD89-1007-06-06 Male 3/8 3/8 G 3/8 Female BSP 1 60.0 (2.36) 24 (0.94)
FD89-1007-08-06 Male 3/8 1/2 G 1/2 Female BSP 1 62.5 (2.46) 27 (1.06)
FD89-1007-08-08 Male 1/2 1/2 G 1/2 Female BSP 1 68.0 (2.67) 32 (1.26)
FD89-1007-12-08 Male 1/2 3/4 G 3/4 Female BSP 1 70.5 (2.78) 36 (1.42)
FD89-1007-12-10 Male 3/4 3/4 G 3/4 Female BSP 1 70.5 (2.78) 36 (1.42)
FD89-1007-16-12 Male 1 1 G 1 Female BSP 1 82.3 (3.24) 45 (1.77)
FD89-1007-20-16 Male 1 1/4 1 1/4 G 1 1/4 Female BSP 1 89.9 (3.54) 55 (2.17)
FD89-1007-24-24 Male 1 1/2 1 1 /2 G 1 1/2 Female BSP 1 111.1 (4.37) 65 (2.56)
FD89-1007-32-32 Male 2 2 G 2 Female BSP 1 123.8 (4.87) 75 (2.95)
FD89 Series ISO 16028 Interchange
FD89-1004-06-04 Male 1/4 9/16 9/16 - 18 UNF Female SAE O-ring 1 50.9 (2.00) 22 (0.86)
FD89-1004-08-06 Male 3/8 3/4 3/4 - 16 UNF Female SAE O-ring 1 62.5 (2.46) 27 (1.06)
FD89-1004-10-06 Male 3/8 7/8 7/8 - 14 UNF Female SAE O-ring 1 64.0 (2.52) 30 (1.18)
FD89-1004-10-08 Male 1/2 7/8 7/8 - 14 UNF Female SAE O-ring 1 70.0 (2.76) 32 (1.26)
FD89-1004-12-08 Male 1/2 11/16 1 1/16 - 12 UN Female SAE O-ring 1 72.0 (2.83) 36 (1.42)
FD89-1004-12-10 Male 3/4 11/16 1 1/16 - 12 UN Female SAE O-ring 1 72.0 (2.83) 36 (1.42)
FD89-1004-16-12 Male 1 1 5/16 1 5/16 - 12 UN Female SAE O-ring 1 82.3 (3.24) 45 (1.77)
FD89-1004-20-16 Male 1 1/4 1 5/8 1 5/8 - 12 UN Female SAE O-ring 1 89.8 (3.54) 55 (2.17)
FD89-1004-24-24 Male 1 1/2 2 1 7/8 - 12 UN Female SAE O-ring 1 111.1 (4.37) 65 (2.56)
FD89-1004-32-32 Male 2 2 1/2 2 1/2 - 12 UN Female SAE O-ring 1 123.8 (4.87) 75 (2.95)
FD89-1008-20 Male 1 1/4 PVC
EATON Quick Disconnect Couplings E-MEQD-MC001-E2
FD89 - 2000 Series
316 Stainless Steel ISO 16028 Interchange
FD89-2002-04-04 Male 1/4 1/4 1/4-18 Female NPT 1 47.9 (1.89) 22 (.87)
FD89-2002-06-06 Male 3/8 3/8 3/8-18 Female NPT 1 60.0 (2.36) 24 (.94)
FD89-2002-08-08 Male 1/2 1/2 1/2-14 Female NPT 1 68.0 (2.68) 32 (1.26)
FD89-2002-12-10 Male 5/8 3/4 3/4-14 Female NPT 1 70.5 (2.78) 36 (1.42)
FD89-2002-16-12 Male 3/4 1 1-11 1/2 Female NPT 1 82.2 (3.24) 46 (1.81)
FD89-2002-20-16 Male 1 1 1/4 1 1/4-11 1/2 Female NPT 1 90.0 (3.54) 55 (2.17)
FD89-2002-24-24 Male 1 1/2 1 1/2 1 1/2-11 1/2 Female NPT 1 111.0 (4.37) 70 (2.76)
FD89-2002-32-32 Male 2 2 2-11 1/2 Female NPT 1 123.8 (4.87) 75 (2.95)
FD89-1009-06 Female PVC
FD89-1009-12 FD89-1009-20 FD89-1009-32
FD89-1008-06-06 Male PVC
FD89-1008-12 Male PVC
FD89-1008-20 Male PVC
FD89-1008-32 Male Aluminum





信德迈科技（北京）有限公司 CNMEC Technology
美国DMK Engineering Solutions公司

地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 1096 2635
Http：//www.cnmec.biz
E-mail：sales@cnmec.biz
传真：010-8428 8762

京ICP备08000876号-1号
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
