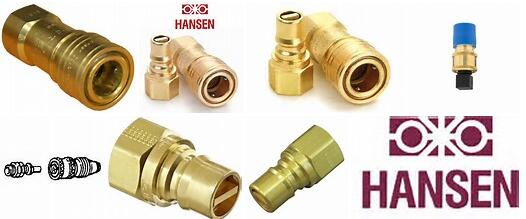

EATON Hansen GAS-Mate系列煤气接头
EATON Hansen GAS-Mate系列煤气接头是单向关断的安全接头，设计用于各种燃气。主体尺寸3/8'' 、1/2''、3/4''、1''和1-1/4''。EATON HANSEN GAS Mate系列是一种单向关闭的接头,用于将设备连接到煤气管道,在着火情况下,该接头能提供很好的安全性;工头采用热感应材质,在温度过高时能切断煤气流动.该系列具有CAS证明符合. 燃气_煤气接头是单向关断的安全接头，设计用于各种燃气。
ANSIZ21.41和CSA6.9-M98的要求。
EATON HANSEN GAS煤气专用接头GAS Mate系列
PDF技术资料下载
特点和优势
- 连接和断开
- 当公头从母头拔出时，自动关断
- 发烧火灾时，热敏公头使得母头阀门关闭，中断气体流动
- 快插式连接 1/4''
GAS-Mater系列用于煤气灶额气它煤气装置。具有美国和加拿大设计证书。对于天然气、人造气，液态石油和生态天然气混合物，压力不大于1/2PSIG,3.5KPa。
标准材质
- 黄铜结构
- 不锈钢球锁
- 氟橡胶母头O型圈
- 用低燃点合金将阀动装置焊接到公头上
附件
- 防尘帽和防尘塞
| Body Size |
Part Number |
Material |
NPT Female Thread |
Coupling Type |
| 3/8 |
100-006E |
Brass |
3/8 - 18 |
Socket |
| 1/2 |
100-008 |
Brass |
1/2 - 14 |
Socket |
| 3/4 |
100-010 |
Brass |
3/4 - 14 |
Socket |
| 1 |
100-012E |
Brass |
1-11.1/2 |
Socket |
| 1 1/4 |
GMS-1250FH |
Brass |
1.1/4-11.1/2 |
Socket |
| 3/8 |
100-506 |
Brass |
3/8/18 |
Plug |
| 1/2 |
100-508 |
Brass |
1/2 - 14 |
Plug |
| 3/4 |
100-510 |
Brass |
3/4 - 14 |
Plug |
| 1 |
100-512 |
Brass |
1-11.1/2 |
Plug |
| 1.1/4 |
GMP-1250F |
Brass |
1.1/4-11.1/2 |
Plug |

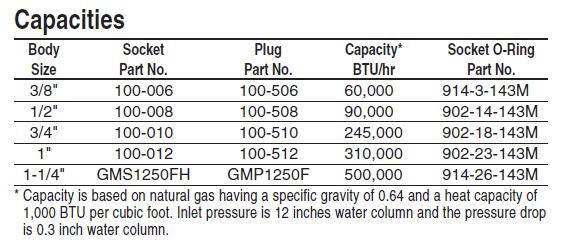

3/8 100006E 100506 60,000
1/2 100008 100508 90,000
3/4 100010 100510 245,000
1 100012E 100512 310,000
1 1/4 GMS1250FH GMP1250F 500,000
100006E Socket/Female 3/8 3/8 3/8-18 NPTF 1 2.44 1.13 0.87 62.0 28.7 22.1
100008 Socket/Female 1/2 1/2 1/2-14 NPTF 1 2.84 1.38 1.00 72.1 35.1 25.4
100010 Socket/Female 3/4 3/4 3/4-14 NPTF 1 3.17 1.75 1.31 80.5 44.5 33.3
100012E Socket/Female
100506 Plug/Male 3/8 3/8 3/8-18 NPTF 2 1.59 0.94 0.81 40.4 23.9 20.6
100508 Plug/Male 1/2 1/2 1/2-14 NPTF 2 1.94 1.15 1.00 49.3 29.2 25.4
100510 Plug/Male 3/4 3/4 3/4-14 NPTF 2 2.06 1.51 1.31 52.3 38.4 33.3
100512 Plug/Male 1 1 1-11 1/2 NPTF 2 2.47 1.73 1.50 62.7 43.9 38.1
GMP1250F* Plug/Male
Eaton’s Gas-Mate? Series quick disconnect couplings are a one-way shut-off safety couplings designed for the connection of gas fired devices or applications.
Series Gas-Mate |
Hansen |
 |
Gas
Couplings |
Sockets |
Body Size |
Part No. |
Thread Size
NPTF |
Dimensions |
A |
B |
Across Flats |
3/8" |
100-006 |
3/8-18 |
2.44 |
1.13 |
1.00 |
1/2" |
100-008 |
1/2-14 |
2.84 |
1.38 |
1.13 |
3/4" |
100-010 |
3/4-14 |
3.17 |
1.75 |
1.50 |
1" |
100-012 |
1-11 1/2 |
3.94 |
2.13 |
1.75 |
Body Size |
Part No. |
Thread Size
NPTF |
Dimensions |
A |
B |
Hex |
1-1/4" |
GMS1250FH |
1 1/4-11 1/2 |
4.15 |
2.28 |
2.00 |
Plugs |
Body Size |
Part No. |
Thread Size
NPTF |
Dimensions |
C |
D |
Hex |
3/8" |
100-506 |
3/8-18 |
1.59 |
0.94 |
0.81 |
1/2" |
100-508 |
1/2-14 |
1.94 |
1.16 |
1.00 |
3/4" |
100-510 |
3/4-14 |
2.06 |
1.52 |
1.31 |
1" |
100-512 |
1-11 1/2 |
2.47 |
1.73 |
1.50 |
Body Size |
Part No. |
Thread Size
NPTF |
Dimensions |
C |
D |
Hex |
1-1/4" |
GMP1250F |
1 1/4-11 1/2 |
2.44 |
2.16 |
1.88 |
All dimensions
in
