Eaton’s Line of Hansen EC Series Couplings
EC Series: Enhanced Design for Medical Imaging Market
医学成像市场设备配套用液冷快速接头
伊顿的EC系列快速连接管接头提供卓越的流动性能和易用性和可靠性。增强的设计使连接和断开冷却管路变得快速和容易。无泄漏密封和易于使用的设计创造了安全连接,可以大大减少图像错误的可能性。Eaton’s EC Series quick connect couplings provide superior flow performance with ease and reliability.The enhanced design makes it fast and easy to connect and disconnect cooling lines. The leak-free seals and easy to use design creates secure connections that can significantly reduce the possibility of image error.
![](pic/ec_series.jpg)
EC series Cooling coupling
EC Series Electronic Cooling Coupling
EC series Cooling coupling特征
Features
- 流量:EC系列耦合提供了可比的竞争平面产品中的低压力下降。
Flow: The EC Series Coupling provides the lowest pressure drop among comparable competitive flat face products.
- 耐久性:经设计和测试,可承受高重力环境。
Durability: Designed and tested to withstand high g-force environments.
- 可靠性:EC系列的新设计减少了漏点,提高了产品的可靠性,大限度地减少了泄漏和空气包合。
Dependability: The new design of the EC Series reduces leak points, improves product reliability,minimizes spillage and air inclusion.
- 连接:与以前的设计相比,连接力减少了30%,便于操作和连接。
Connection: 30% reduction in force to connect compared to previous design allowing for easier handling and connections.
Benefits
- 改善电气系统的保护,减少泄漏。
Improved protection of electrical system with minimal spillage.
- 用户友好的技术服务
User friendly to service technicians.
- 低压降,降低泵负荷。
Low pressure drop, which reduces pump load.
- 进行长期可靠性和耐久性试验。
Cycle tested for long term reliability and durability.
材质Materials
- 316 Stainless Steel
- Brass
- Steel
密封Seals
- Buna
- Viton
- EPDM

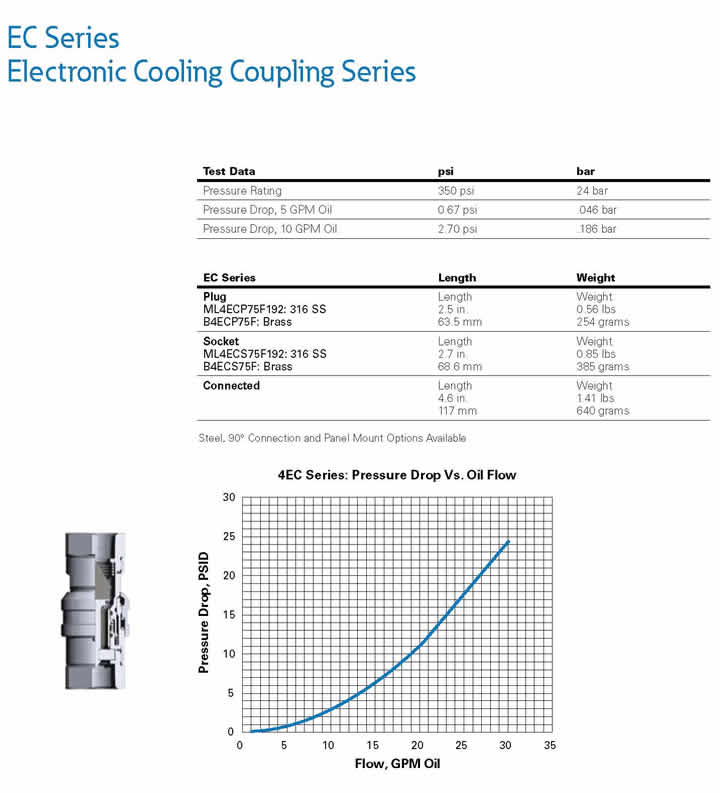

EC Series
Electronic Cooling Coupling
Test Data psi bar
Pressure Rating 350 psi 24 bar
Pressure Drop, 5 GPM Oil 0.67 psi .046 bar
Pressure Drop, 10 GPM Oil 2.70 psi .186 bar
EC Series Length Weight
Plug
ML4ECP75F192: 316 SS
B4ECP75F: Brass
Socket
ML4ECS75F192: 316 SS
B4ECS75F: Brass
- Electronic Cooling Coupling - EC Series Coupling Medical Imaging Market
