Parker Legris乐可利工业用球阀
Legris Industrail Ball Valves | LEGRIS Ball Valves | Axial Valves - legris

Legris乐可利球阀可提供如下功能:

- 手动实现开启和关闭一个回路.
- 通过气控或电控来开启和关闭一个回路, 如轴阀.
- 调节流量大小: 如针阀

铜质球阀-低 / 中压力范围

乐可利铜质球阀适用于中低压场合，可用手动实现开启和关闭，从而达到控制压缩空气和其他流体的功能．具有多种型式供选择：直通，三通，带锁型等．工作压力从１２到40u bar；根据不同的款型，工作温度可从-20°到 +130°C　

Parker Legris Industrial Valves Ball Valves Needle Valves Ground Plug Shutoff Valves/Drain Cocks

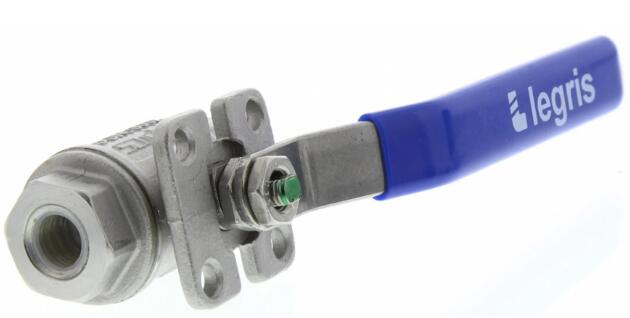

低/中压不锈钢球阀

乐可利不锈钢球阀适用于恶劣的流体和腐蚀性的工作环境，具有优异的耐压和耐温性能．根据不同款型，工作压力从25至140bar；工作温度从-10°到 +180°C．该产品有多种材质供选择：AISI 316, 304L 和 303L；有FKM密封圈和PTFE密封垫供选择．

Parker派克聚丙烯球阀通过内置的 LIQUIfit，TrueSeal 和插管式连接，耐腐蚀能力使其成为水过滤装置，咖啡和饮料机以及各种其他流体应用的选择。派克的聚丙烯球阀耐腐蚀能力使其成为水过滤装置，咖啡和饮料机以及各种其他流体应用的选择。派克的聚丙烯球阀通过内置的 LIQUIfit，TrueSeal 和插管式连接节省成本，无需二次配件。紧凑的设计易于安装，节省空间并易于维护。聚丙烯球阀符合所有的美国 FDA 和 NSF-51 要求，以保证其能够与食品接触。

Parker's polypropylene ball valves corrosion resistant design make them ideal for water filtration units, coffee and beverage machines and various other fluid applications. Parker's polypropylene ball valves save cost with built-in LIQUIfit, TrueSeal and Par-Barb connections eliminating the need for a secondary fitting. The compact design allows for easy assembly and access where space is at a premium. Polypropylene ball valves meets all FDA and NSF-51 requirements for food contact.

MINI-BALL VALVES

Legris mini-ball valves enable in-line opening and closing of a pneumatic circuit. Compact and light weight, they are suited to all types of installation.

BALL VALVES LIQUIFIT®

This range of valves offers an innovative solution in the treatment of water and the handling of beverages while protecting health. These compact and reliable valves offer perfect sealing and excellent cleanliness.Nominal pressure: 10 bar, temperatures: -15°C to +100°C.

针阀

乐可利针阀用于开启和关闭回路，同时可以精确地控制流量，有直通式和直角式．工作压力为：120 bar；工作温度从-20°到+100°C．材质：铜镀镍，表面喷沙处理． STAINLESS STEEL NEEDLE VALVE Excellent chemical resitance to aggressive fluids and environments. Good
resistance to pressure. PTFE O-rings.


先导阀

乐可利轴阀用于通过气控或电控远距离实现开启和关闭的功能．与一般的执行器比较，乐可利轴阀外形更紧凑，可节省大约５０％的空间．工作压力为１０bar；根据不同的型式，工作温度：-20°到，+120°C (EPDM密封圈)或 +135°C（FKM密封圈）

0402 - BALL VALVE DOUBLE FEMALE
Ball valve for opening and closing fluid circuits with a simple quarter turn of the handle.
Universal series, available from 1/8" to 2" parallel thread.

0401 - BALL VALVE MALE FEMALE0401 - BALL VALVE MALE FEMALE
Ball valve for opening and closing fluid circuits with a simple quarter turn of the handle.
Universal series, available from 1/8" to 1"1/4 parallel thread.

0400 - BALL VALVE DOUBLE MALE0400 - BALL VALVE DOUBLE MALE
Ball valve for opening and closing fluid circuits with a simple quarter turn of the handle.
Universal series, available from 1/8" to 3/4" parallel thread.

0411 - VALVE WITH 2 COUPLINGS FOR USE WITH STEEL TUBE0411 - VALVE WITH 2 COUPLINGS FOR USE WITH STEEL TUBE
Vented ball valve for opening and closing circuits with steel tubes.
Universal series, available from 6 mm to 12 mm parallel thread.

0414 - VALVE WITH 2 COUPLINGS WITH DOUBLE TAPER RINGS0414 - VALVE WITH 2 COUPLINGS WITH DOUBLE TAPER RINGS
In-line ball valve with two couplings fitted with double taper rings for steel or thermoplastic tubes.
Universal series, available from 6 mm to 12 mm parallel thread.

0446 - BALL VALVE DOUBLE FEMALE PANEL MOUNTED0446 - BALL VALVE DOUBLE FEMALE PANEL MOUNTED
Panel mountable in-line ball valve for opeing and closing fluid systems.
Universal series, available from 1/8" to 1/2" parallel thread.

6402 - DOUBLE FEMALE BALL VALVE FOR SCREW FIXING6402 - DOUBLE FEMALE BALL VALVE FOR SCREW FIXING
Mountable ball valve for opening and closing fluid systems.
Universal series, available from 1/8" to 1" parallel thread.

6401 - MALE AND FEMALE BALL VALVE FOR SCREW FIXING6401 - MALE AND FEMALE BALL VALVE FOR SCREW FIXING
Mountable ball valve for opening and closing fluid systems with optimum sealing due to "O" rings.
Universal series, available from 1/8" to 1/2" parallel thread.

0489 - IN-LINE VENTED BALL VALVE DOUBLE FEMALE BSPP0489 - IN-LINE VENTED BALL VALVE DOUBLE FEMALE BSPP
Double female BSPP valve, with threaded exhaust.
Universal series, available from 1/4" to 1" parallel thread.

0449 - VENTED BALL VALVE DBLE FEMALE PANEL MOUNTABLE0449 - VENTED BALL VALVE DBLE FEMALE PANEL MOUNTABLE
Double female BSPP valve, panel mountable, with threaded exhaust.
Universal series, available from 1/4" to 1/2" parallel thread.

0469 - DOUBLE FEMALE VENTED BSPP BALL VALVE0469 - DOUBLE FEMALE VENTED BSPP BALL VALVE
In-line vented ball valve.
Universal series, available from 1/8" to 1" parallel thread.

4402 - HIGH PRESSURE BALL VALVE, DOUBLE FEMALE4402 - HIGH PRESSURE BALL VALVE, DOUBLE FEMALEOffers excellent pressure resistance.
0472 - BALL VALVE WITH RIGHT ANGLED FLOW, DOUBLE FEMALE0472 - BALL VALVE WITH RIGHT ANGLED FLOW, DOUBLE FEMALE
Valve for opening and closing fluid circuits.
Universal series, available from 1/8" to 1" parallel thread.

0471 - BALL VALVE WITH RIGHT ANGLED FLOW,MALE AND FEMALE0471 - BALL VALVE WITH RIGHT ANGLED FLOW,MALE AND FEMALE
Valve for opening and closing fluid circuits.
Universal series, available from 1/8" to 1" parallel thread.

0462 - BALL VALVE RIGHT ANGLED FLOW, DBLE FEM. WITH VENT0462 - BALL VALVE RIGHT ANGLED FLOW, DBLE FEM. WITH VENT
Standard vented ball valve.
Universal series, available from 1/8" to 1" parallel thread.

0461 - BALL VALVE RIGHT ANGLED FLOW,MALE & FEM. WITH VENT0461 - BALL VALVE RIGHT ANGLED FLOW,MALE & FEM. WITH VENT
Standard vented ball valve.
Universal series, available from 1/8" to 3/4" parallel thread.

0482 - 3 WAY BALL VALVE FEMALE RIGHT ANGLED PORTING0482 - 3 WAY BALL VALVE FEMALE RIGHT ANGLED PORTING
Female right angled three-way ball valve.
Universal series, available from 1/8" to 1" parallel thread.

0483 - 3 WAY BALL VALVE,FEM. RIGHT ANGLED PORTING0483 - 3 WAY BALL VALVE,FEM. RIGHT ANGLED PORTING
Three-way non-closing panel-mountable ball valve.
Universal series, available from 1/8" to 1" parallel thread.

0448 - 3 WAY BALL VALVE PANEL MOUNTABLE FEM. RIGHT ANGLED0448 - 3 WAY BALL VALVE PANEL MOUNTABLE FEM. RIGHT ANGLED
Panel mountable 3 way ball valve.
Universal series, available from 1/8" to 1/2" parallel thread.

0452 - 3 WAY BALL VALVE PANEL MOUNTABLE FEM. EQUAL PLANE0452 - 3 WAY BALL VALVE PANEL MOUNTABLE FEM. EQUAL PLANE
Panel mountable equal plane porting ball valve.
Universal series, available from 1/8" to 1/4" parallel thread.

0432 - IN-LINE DOUBLE FEMALE, BSPP0432 - IN-LINE DOUBLE FEMALE, BSPP
Lockable ball valve for opening and closing fluid circuits.
Universal series, available from 1/8" to 1" parallel thread.

0439 - DOUBLE FEMALE WITH VENT, BSPP0439 - DOUBLE FEMALE WITH VENT, BSPP
Vented lockable ball valve for opening and closing circuits.
Universal series, available from 1/8" to 1" parallel thread.

0436 - DOUBLE FEMALE WITH THREADED EXHAUST, BSPP0436 - DOUBLE FEMALE WITH THREADED EXHAUST, BSPP
Lockable ball valve for opening and closing fluid circuits.
Universal series, available from 3/8" to 1" parallel thread.

0437 - IN-LINE DOUBLE FEMALE VENTED, BSPP0437 - IN-LINE DOUBLE FEMALE VENTED, BSPP
Lockable ball valve for opening and closing fluid circuits. Lock in closed position to avoid potentially dangerous unintended operation.
Universal series, available from 1/4" to 1" parallel thread.

0438 - FEMALE 3 WAY, BSPP0438 - FEMALE 3 WAY, BSPP
Lockable ball valve for opening and closing fluid circuits. Lock in closed position to avoid potentially dangerous unintended operation.
Universal series, available from 3/8" to 1" parallel thread.

0499 - WITH THREADED EXHAUST, NPT0499 - WITH THREADED EXHAUST, NPTAllows for system vent while closing the valve and for the addition of a locking mechanism.
0492 - LIGHT SERIES BALL VALVES DOUBLE FEMALE0492 - LIGHT SERIES BALL VALVES DOUBLE FEMALE
Valve for opening and closing fluid circuits where dimensions are reduced.
Universal series, available from 1/4" to 3/4" parallel thread.

049C - 2/2 LIGHT SERIES BALL VALVES FEMALE SHORT HANDLE, FEMALE BSPP THREAD049C - 2/2 LIGHT SERIES BALL VALVES FEMALE SHORT HANDLE, FEMALE BSPP THREAD
Valve for opening and closing fluid circuits where dimensions are reduced.

0491 - LIGHT SERIES BALL VALVES MALE AND FEMALE0491 - LIGHT SERIES BALL VALVES MALE AND FEMALE
Valve for opening and closing fluid circuits where dimensions are reduced.
Universal series, available from 1/4" to 3/4" parallel thread.

049D - 2/2 LIGHT SERIES BALL VALVES SHORT HANDLE, MALE/FEMALE BSPP THREAD049D - 2/2 LIGHT SERIES BALL VALVES SHORT HANDLE, MALE/FEMALE BSPP THREAD
Valve for opening and closing fluid circuits where dimensions are reduced.

0490 - LIGHT SERIES BALL VALVES DOUBLE MALE0490 - LIGHT SERIES BALL VALVES DOUBLE MALE
Valve for opening and closing fluid circuits where dimensions are reduced.
Universal series, available from 1/4" to 3/4" parallel thread.

0494 - LIGHT SERIES VALVE DOUBLE FEMALE + 2 VENT PLUGS0494 - LIGHT SERIES VALVE DOUBLE FEMALE + 2 VENT PLUGS
Valve for opening and closing fluid circuits where dimensions are reduced.
Universal series, 3/8" parallel thread.

0497 - LENTICULAR SHUT-OFF VALVE DBLE FEMALE SQUARE STEM0497 - LENTICULAR SHUT-OFF VALVE DBLE FEMALE SQUARE STEMValve for opening and closing fluid circuits where dimensions are reduced.
0496 - LENTICULAR SHUT-OFF VALVE MALE&FEMALE SQUARE STEM0496 - LENTICULAR SHUT-OFF VALVE MALE&FEMALE SQUARE STEM
Valve for opening and closing fluid circuits where dimensions are reduced.
Universal series, available from 1/4" to 3/4" parallel thread.

4602 - LENTICULAR SHUT-OFF VALVE DOUBLE FEMALE4602 - LENTICULAR SHUT-OFF VALVE DOUBLE FEMALERecommended for carrying fluids including solid particles.
4902 - FEMALE/FEMALE, BSP PARALLEL4902 - FEMALE/FEMALE, BSP PARALLEL
Opening and closing a fluid system. Good pressure and temperature performance.
Standard series, available from 1/4" to 4" parallel thread.

4991 - 2/2 Standard Compact Series Ball Valve, Male/Female BSPP Thread4991 - 2/2 STANDARD COMPACT SERIES BALL VALVE, MALE/FEMALE BSPP THREAD
Enable opening and closing of a circuit in a machine where space is reduced.
Standard series, available from 1/8" to 1/2" parallel thread.

4992 - 2/2 Standard Compact Series Ball Valve, Double Female BSPP Thread4992 - 2/2 STANDARD COMPACT SERIES BALL VALVE, DOUBLE FEMALE BSPP THREAD
Enable opening and closing of a circuit in a machine where space is reduced.
Standard series, available from 1/8" to 1/2" parallel thread.

4962 - FEMALE 2 WAY BALL VALVE NPT4962 - FEMALE 2 WAY BALL VALVE NPTOpening and closing a fluid system. Good pressure and temperature performance.
