美国Autoclave Engineers MagneDrive 磁力耦合搅拌器
Autoclave Engineers公司生产的MagnePumps系列高压泵

Autoclave Engineers 1945年由Fred Gashe成立，以优良的压力反应器和管路阀门设备闻名于世。在超过半个世纪的发展历程中，Autoclave Engineers致力于产品的安全和可靠性，持续推动整个行业的发展。极大的提高了压力反应器安全性和使用范围，广泛应用在压力设备领域，成为行业标准。其产品在石油化工，食品医药，环境保护，精细化工等诸多领域得到了广泛的使用。

Autoclave Engineers公司生产的MagneDrives系列产品是一种高速磁力耦合搅拌设备，该磁力耦合搅拌器适合在高压环境中使用，且不会对生产过程造成污染。MagneDrives系列搅拌器具有多种型号，从小型的实验室规格到工厂搅拌器规格均有提供。此类高速搅拌器适用于气体弥散、液体混合以及固体的悬浮作业。

Autoclave Engineers公司生产的MagnePumps系列高压泵，能够杜绝或减轻传统泵的常见问题，如泄漏、污染和发热等。Autoclave Engineers公司生产的高压泵适合在以下环境中使用：对液体的高纯性有严格要求的应用；一旦介质发生泄漏会产生严重危险的应用，如核回路、石油水化物回路等。

Magnetically Coupled Mixers
- Agitator/Mixer Product Comparison
- MagneDrive Application Data Sheet
- MagneDrives Select Guide
- Mag III (3050) - MagneDrive
- Mag 2.75 - Production Scale High Pressure Magnetic Mixer
- Mag 0.75 - Laboratory High Pressure Magnetic Mixer
- MAG075 Inline MagneDrive Series
- Mag 1.5001 - Pilot Scale High Presure Magnetic Mixer 1.5001 Pressure Magnetic Mixer MagneDrive II agitator
- Mag 1.5002 - MagneDrive II Series
- Mag 1.5004-1.5010 - MagneDrive II Series

Autoclave Engineers Magnetically Coupled Mixers:
Agitator/Mixer Product Comparison
Mag III (3050) - MagneDrive
Mag 2.75 - Production Scale High Pressure Magnetic Mixer
Mag 0.75 - Laboratory High Pressure Magnetic Mixer
Mag 1.50 - Pilot Scale High Presure Magnetic Mixer
Mag 1.5004-1.5010 - MagneDrive II Series

1.5002 Pressure Magnetic Mixer 磁力搅拌器	1.5004-1.5010 MagneDrive磁力搅拌器

Magnetically Coupled Mixers - Autoclave Engineers' MagneDrives

3050 MagneDrive® - III Series
A compact, In-Line Magnetically Coupled Drive.
5 in-lb (565 N-mm) of static torque
Designed for simple disassembly and maintenance
Capable of speeds up to 3,600 rpm and pressures up to 6,000 psi..

075 MagneDrive®- II Series
Magnetic agitator with shaft & torque for high pressure production reactors
The MagneDrive agitator uses rare earth magnets, permitting packless mixing at higher speeds and with higher viscosity fluids. Outer drive magnets, rotated by a motor driven belt exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

MAG075 Inline MagneDrive®
A compact, In-Line Magnetically Coupled Drive.
In-line magnetically coupled drive for contamination-free mixing in high pressure vessels Up to 7 inch-lbs (791 N-mm) of static torque can be created Capable of speeds up to 3300 rpm and pressures up to 6,000 psi @ 850° F
(414 bar @ 454° C) Various impellers or catalyst baskets are available for vessel sizes from 100 ml to 4000 ml

1.5001 MagneDrive® - II Series
Magnetic agitator with shaft for high pressure laboratory reactors
MagneDrive II agitators use rare earth magnets, permitting packless mixing at higher speeds in larger vessels and with higher viscosity fluids. Outer drive magnets, rotated by a motor-driven belt, exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

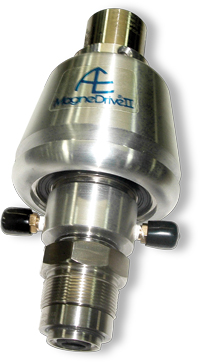

1.5002 MagneDrive® - II Series
Magnetic agitator with shaft for high pressure laboratory reactors
MagneDrive II agitators use rare earth magnets, permitting packless mixing at higher speeds in larger vessels and with higher viscosity fluids. Outer drive magnets, rotated by a motor-driven belt, exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

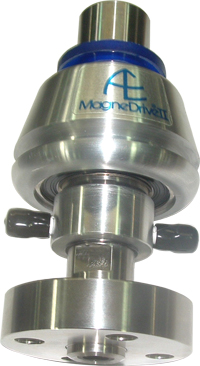

1.5004-1.5010 MagneDrive® - II Series
Magnetic agitator with shaft for high pressure laboratory reactors
MagneDrive II agitators use rare earth magnets, permitting packless mixing at higher speeds in larger vessels and with higher viscosity fluids. Outer drive magnets, rotated by a motor-driven belt, exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

2.75 MagneDrive®- II Series
Magnetic agitator with shaft for high pressure laboratory reactors
MagneDrive II agitators use rare earth magnets, permitting packless mixing at higher speeds in larger vessels and with higher viscosity fluids. Outer drive magnets, rotated by a motor-driven belt, exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

MAG III MagneDrive
The MagneDrive agitator uses rare earth magnets, permitting packless mixing at higher speeds and with higher viscosity fluids. Outer drive magnets, rotated by a direct coupled motor exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

Contamination-free mixing- Packless design eliminates shaft packing and need for lubrication.
Zero leakage to atmosphere- The MagneDrive is a sealed system, closed to the atmosphere, so even sensitive fluids can be processed safely.
Continuous, high speed operation- No need to shut down in mid-reaction to change failed packing.

Autoclave Engineers 压力设备经过严格ISO9001质量认证，产品通过了ASME(美国机械工程师学会)，CE(欧洲统一认证)，PED(欧洲压力许可认证)，CRN(加拿大注册编号)等国际权威机构的认证。

Autoclave Engineers 产品扩展性良好，可扩展为多釜串联连续流动反应器，或者多釜平行反应装置。釜体可在允许范围内加装各种检测设备或配件，以满足用户个性化的需求。

Autoclave Engineers 产品提供了高度的通用性，为用户大程度减少使用和维护成本。不同型号的产品，其部件通用性高达70%，通过更换反应釜体，搅拌部件，阀门管路等方法，扩展使用范围，达到设备大的利用率。搅拌机MagneDrive第二搅拌器使用稀土磁铁，允许在更高的速度在较大的船只，并具有较高的粘度流体的无填料混合。外驱动磁体，由电动机驱动皮带旋转，封装内磁铁大会施加强大的吸引力。作为外部驱动器磁体旋转，内在的磁铁驱动，致使搅拌轴旋转。污染无搅拌，无填料的设计消除了轴填料和润滑需要。零泄漏到大气的MagneDrive II是一个密封的系统， 封闭的气氛，所以即使是敏感的液体可以被安全地处理 。连续，高速运转，没有必要把自己关在反应中改变失败的包装。
