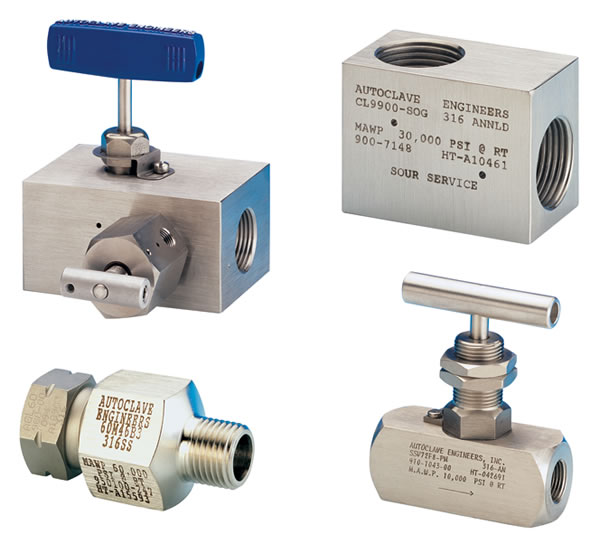

耐酸性腐蚀产品 Autoclave Engineers Sour Service Products
Designed for sour oil and gas flow system applications.

酸气环境应用产品

Parker Autoclave Engineers专为酸性油气H2S硫化氢环境设计和制造了高压阀门，接头和钢管，并满足NACE MR0175-2002(NACE现有版本)要求。S0G产品线的材料与制造工艺符合NACE要求。标准工况的阀门和接头工作压力为60000si(4140 bar)100°F 38度。；SOG阀门和接头工作压力为3000psi(2068 bar) 100°F 38度。阀门不提供 collars和 glands，除非型号另有标定。

包括针阀、表阀、单向阀、接头、管子、压力表等。可用于酸性的油和气体，满足或超过NACE MR0175标准的所有要求。 Sour Service Products - Autoclave's Engineers offers sour service oil field components for H2S applications. Valves, fittings, tubing. adapters, and gauges are available for sour service and can be NACE compliant.

用于酸性环境的井口压力计和放气阀，压力为20000 psi 1379 bar Wellhead Gauge and Bleed Valves to 20,000 psi (1379 bar) for Sour Service.	酸性介质用30VM-SOG阀门至20000 psi（1379 bar） 30VM-SOG Valves to 20,000 psi (1379 bar) for Sour Service
酸性介质用60VM-SOG阀门至30000 psi（2068 bar） 60VM-SOG Valves to 30,000 psi (2068 bar) for Sour Service	酸性设备配件弯头、三通、四通、直通和隔板接头 Sour Service Fittings Elbows, Tees, Crosses, Straight and Bulkhead Couplings
酸性作业钢管 Sour Service Tubing： Tubing to 30,000 psi (2068 bar)	酸性设备用锥形和螺纹管接头达到30000 psi（2068bar） Sour Service Nipples Coned and Threaded Nipples to 30,000 psi (2068 bar)
酸性介质止回阀：O形圈、球形和溢流止回阀至30000 psi（2068 bar） Sour Service Check Valves:O-Ring, Ball and Excess Flow Check Valves to 30,000 psi (2068 bar)	接头和联接器达到30000磅/平方英寸（2068bar） Adapter and Couplings to 30,000 psi (2068 bar)
Sever Service Valves to 10,000 psi (690 bar)	压力表 Pressure Gauges:SOG Gauges to 20,000 psi (1379 bar)

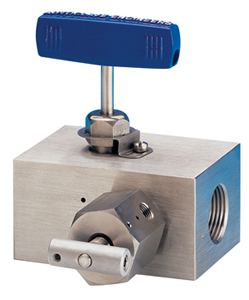

井口压力表和放气阀至20000 psi
Wellhead Gauge and Bleed Valves to 20,000 psi (1379 bar)


Wellhead gauge and bleed valves are ideal for instrumentation calibration or sampling. Wellhead gauge and bleed valves are standard in 316 stainless steel annealed material and comply with NACE MR0175.

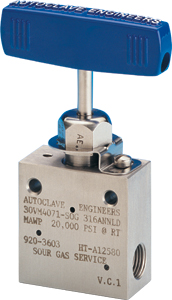

30VM-SOGWO Series
30VM-SOGWO Series rated to 20,000 (1379 bar)

标准30VM系列阀门，设计符合NACE MR0175，额定值为20000 psi（1379 bar）。标准配置有一个整体旋转阀杆，没有压盖和套环。Standard 30VM series valves designed to NACE MR0175 and rated to 20,000 psi (1379 bar). Furnished with a one piece rotating stem and without glands and collars, as a standard.

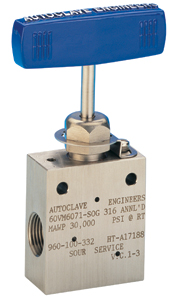

60VM-SOGWO Series
60VM-SOGWO Series rated to 30000 (2068 bar)

根据NACE MR0175-2002设计的标准60VM系列阀门，额定压力为30000 psi（2068巴）。标准配置有一个整体旋转阀杆，没有压盖和套环。Standard 60VM series valves designed to NACE MR0175-2002 and rated to 30,000 psi (2068 bar). Furnished with a one piece rotating stem and without glands and collars, as a standard.

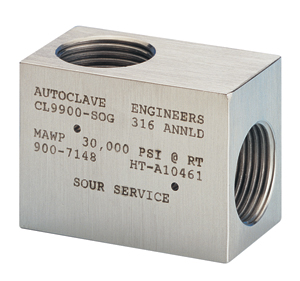

Sour Service Fittings

Sour Service Fittings to 30,000 psi (2068 bar)
Sour gas elbows, tee, crosses, couplings and bulkhead couplings rated to 30,000 psi (2068 bar) without glands and collars.

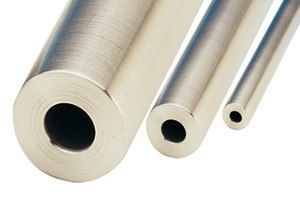

Sour Service Tubing

Sour Service Fittings to 30,000 psi (2068 bar)
Seamless annealed stainless steel tubing for sour gas service in 1/4", 3/8", and 9/16" sizes.

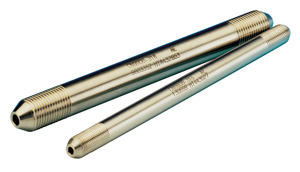

Sour Service Nipples

Sour Service Fittings to 30,000 psi (2068 bar)
Coned and threaded sour gas nipples in 1/4", 3/8", and 9/16" sizes and various lengths.

Sour Service Check Valves

Severe Service Valves to 10,000 psi (690 bar)
Sour gas service O-ring and ball check valves, and ball type excess flow valves.

Adapters/Couplings

Severe Service Valves to 10,000 psi (690 bar)
Sour gas male to female, male to male adapters and adapter couplings.

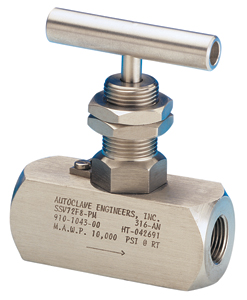

Severe Service Valves

Severe Service Valves to 10,000 psi (690 bar)

重型阀门符合NACE标准，适用于各种重型应用。该阀门独特的阀杆设计包括一个不旋转的球头以及吹出保护。Severe service valves comply with NACE and are suitable for a wide range of severe duty applications. The valve's unique stem design includes a non rotating ball point as well as blow-out protection.

SOG Pressure Gauges
酸气压力表

Sour Service Gauges to 20,000 psi (1379 bar), Sour service pressure gauges to 20,000 psi (1379 bar) with male M562C, API Type III connection. Parker Autoclave Engineer's SOG gauges are designed for reliable use in systems with H2S present. These gauges are constructed from stainless steel and are supplied with API Type III connection.
