伊顿汉森 HK系列碳钢快速接头 1-8 系列母插座 1/8-27 NPTF VALVED - ISO 7241-1 B 互换碳钢快速接头替代 FD45系列
伊顿 HK 1-8 系列碳钢快速接头 - ISO 7241-1 B 互换 - 插座（母） - 碳钢快速接头

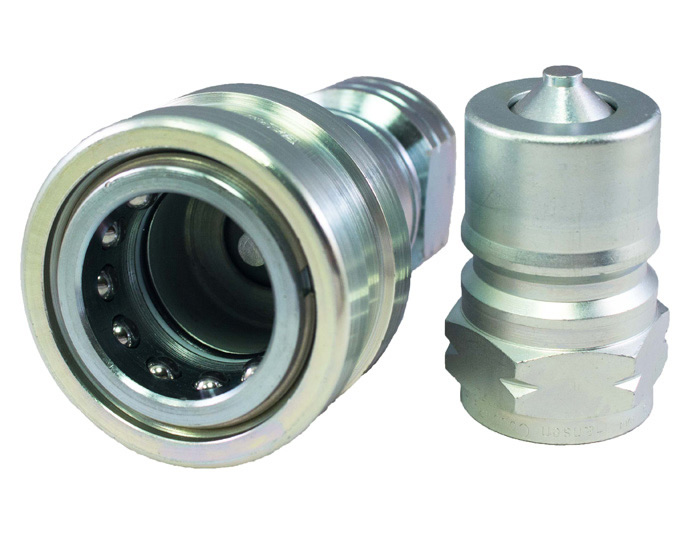

伊顿的 HK 系列碳钢快速接头为 ISO B 碳钢快速接头设定了行业标准。HK 系列具有坚固的球锁机构和自动自密封提升阀，具有多种端口配置以及多阀和非阀配置。Eaton's HK Series coupling sets the industry standard for ISO B Couplings. The HK Series features a rugged ball latch mechanism with automatic self-sealing poppet valves in a wide array of port configurations and multiple valved and non-valved configurations.
特征：
符合 ISO 标准 7241-1 B 系列的尺寸要求
自密封提升阀设计提供出色的高低压密封
标准密封材料：丁腈橡胶-N
插座中的 PTFE 支撑环（内螺纹）
伊顿 HK 1-8 系列碳钢快速接头 - ISO 7241-1 B 互换 - 插座（母） - 碳钢快速接头
HANSEN HK (Steel): ISO 7241/1B Series Interchange Fluid Transfer and Hydraulic
*For questions related to vacuum please contact Eaton **No ISO Standard available for the 10HK
| Series |
Body Size |
ISO Size |
Nominal Flow Diameter |
Max. Operating Pressure |
Rated Flow |
Air Inclusion |
Fluid Loss |
| in |
mm |
mm |
bar |
psi |
lpm |
gpm |
cc.max. |
cc.max. |
| 1HK |
1/8 |
5 |
4.4 |
275 |
4000 |
3 |
0.8 |
0.6 |
0.5 |
| 2HK |
1/4 |
6.3 |
5.9 |
345 |
5000 |
12 |
3 |
1.2 |
0.9 |
| 3HK |
3/8 |
10 |
7.8 |
275 |
4000 |
23 |
6 |
2.9 |
2.1 |
| 4HK |
1/2 |
12.5 |
10 |
345 |
5000 |
45 |
12 |
3.6 |
3.5 |
| 6HK |
3/4 |
20 |
17 |
275 |
4000 |
100 |
26 |
11.5 |
9.3 |
| 8HK |
1 |
25 |
19.6 |
275 |
4000 |
189 |
50 |
18 |
16.9 |
| 10HK |
1 1/4.* |
- |
26.7 |
118 |
1700 |
288 |
76 |
48 |
48 |
| 12HK |
1 1/2 |
40 |
35.1 |
152 |
2200 |
375 |
99 |
91.3 |
91.3 |
| 20HK |
2 1/2 |
50 |
46 |
104 |
1500 |
757 |
200 |
209.9 |
209.9 |
*For questions related to vacuum please contact Eaton **No ISO Standard available for the 10HK
NV = No Valve | VAA = Valve Actuator Assembly | SL = Sleeve Lock (Sockets Only)
| Part Number |
Seal Elastomer |
Valved |
Body Size |
ISO Size |
Thread Size (Female) |
Dimensions |
| in |
mm |
NPTF |
BSPP |
SAE |
A |
B |
Across Flats |
| in (mm) |
in (mm) |
in (mm) |
| 1H11 |
Standard Buna-N |
Yes |
1/8 |
5 |
2001/8/27 |
- |
- |
1.91 (48.5) |
0.98 (24.9) |
0.56 (14.2) |
| 1H11118 |
Neoprene |
Yes |
1/8 |
5 |
2001/8/27 |
- |
- |
1.91 (48.5) |
0.98 (24.9) |
0.56 (14.2) |
| 1H11143 |
FKM |
Yes |
1/8 |
5 |
2001/8/27 |
- |
- |
1.91 (48.5) |
0.98 (24.9) |
0.56 (14.2) |
| 1H11146 |
Special Buna-N* |
Yes |
1/8 |
5 |
2001/8/27 |
- |
- |
1.91 (48.5) |
0.98 (24.9) |
0.56 (14.2) |
| 1H11192 |
EPDM |
Yes |
1/8 |
5 |
2001/8/27 |
- |
- |
1.91 (48.5) |
0.98 (24.9) |
0.56 (14.2) |
| 1H11BS |
Standard Buna-N |
Yes |
1/8 |
5 |
2001/8/28 |
- |
- |
1.91 (48.5) |
0.98 (24.9) |
0.56 (14.2) |
| 1H11NV |
Standard Buna-N |
No |
1/8 |
5 |
2001/8/27 |
- |
- |
1.91 (48.5) |
0.98 (24.9) |
0.56 (14.2) |
| 1H11SL |
Standard Buna-N |
Yes |
1/8 |
5 |
2001/8/27 |
- |
- |
1.91 (48.5) |
0.98 (24.9) |
0.56 (14.2) |
| 1H11VAA |
Standard Buna-N |
No |
1/8 |
5 |
2001/8/27 |
- |
- |
1.91 (48.5) |
0.98 (24.9) |
0.56 (14.2) |
| 1H11VAA143 |
FKM |
No |
1/8 |
5 |
2001/8/27 |
- |
- |
1.91 (48.5) |
0.98 (24.9) |
0.56 (14.2) |
|
| 1H4 |
Standard Buna-N |
Yes |
1/8 |
5 |
- |
- |
7/16-20 |
2.06 (52.3) |
0.98 (24.9) |
0.69 (17.5) |
| 1H4143 |
FKM |
Yes |
1/8 |
5 |
- |
- |
7/16-20 |
2.06 (52.3) |
0.98 (24.9) |
0.69 (17.5) |
| 1H4192 |
EPDM |
Yes |
1/8 |
5 |
- |
- |
7/16-20 |
2.06 (52.3) |
0.98 (24.9) |
0.69 (17.5) |
| 1H4VAA |
Standard Buna-N |
No |
1/8 |
5 |
- |
- |
7/16-20 |
2.06 (52.3) |
0.98 (24.9) |
0.69 (17.5) |
| 1H4VAA143 |
FKM |
No |
1/8 |
5 |
- |
- |
7/16-20 |
2.06 (52.3) |
0.98 (24.9) |
0.69 (17.5) |
|
| 2H16 |
Standard Buna-N |
Yes |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16115 |
PTFE |
Yes |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16118 |
Neoprene |
Yes |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16143 |
FKM |
Yes |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16146 |
Special Buna-N* |
Yes |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16192 |
EPDM |
Yes |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16BS |
Standard Buna-N |
Yes |
1/4 |
6.3 |
- |
2001/4/19 |
- |
2.31 (58.7) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16BS115 |
PTFE |
Yes |
1/4 |
6.3 |
- |
2001/4/19 |
- |
2.31 (58.7) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16BS118 |
Neoprene |
Yes |
1/4 |
6.3 |
- |
2001/4/19 |
- |
2.31 (58.7) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16BS143 |
FKM |
Yes |
1/4 |
6.3 |
- |
2001/4/19 |
- |
2.31 (58.7) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16BS146 |
Special Buna-N* |
Yes |
1/4 |
6.3 |
- |
2001/4/19 |
- |
2.31 (58.7) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16BS192 |
EPDM |
Yes |
1/4 |
6.3 |
- |
2001/4/19 |
- |
2.31 (58.7) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16BSSL |
Standard Buna-N |
Yes |
1/4 |
6.3 |
- |
2001/4/19 |
- |
2.31 (58.7) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16BSSL115 |
PTFE |
Yes |
1/4 |
6.3 |
- |
2001/4/19 |
- |
2.31 (58.7) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16BSVAA |
Standard Buna-N |
No |
1/4 |
6.3 |
- |
2001/4/19 |
- |
2.31 (58.7) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16NV |
Standard Buna-N |
No |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16NV118 |
Neoprene |
No |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16NV143 |
FKM |
No |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16NV192 |
EPDM |
No |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16SL |
Standard Buna-N |
Yes |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16VAA |
Standard Buna-N |
No |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16VAA143 |
FKM |
No |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
| 2H16VAA192 |
EPDM |
No |
1/4 |
6.3 |
2001/4/18 |
- |
- |
2.26 (57.4) |
1.14 (29.0) |
0.75 (19.1) |
|
| 2H6 |
Standard Buna-N |
Yes |
1/4 |
6.3 |
- |
- |
9/16-18 |
2.40 (61.0) |
1.14 (29.0) |
0.88 (22.4) |
| 2H6118 |
Neoprene |
Yes |
1/4 |
6.3 |
- |
- |
9/16-18 |
2.40 (61.0) |
1.14 (29.0) |
0.88 (22.4) |
| 2H6143 |
FKM |
Yes |
1/4 |
6.3 |
- |
- |
9/16-18 |
2.40 (61.0) |
1.14 (29.0) |
0.88 (22.4) |
| 2H6146 |
Special Buna-N* |
Yes |
1/4 |
6.3 |
- |
- |
9/16-18 |
2.40 (61.0) |
1.14 (29.0) |
0.88 (22.4) |
| 2H6192 |
EPDM |
Yes |
1/4 |
6.3 |
- |
- |
9/16-18 |
2.40 (61.0) |
1.14 (29.0) |
0.88 (22.4) |
| 2H6SL |
Standard Buna-N |
Yes |
1/4 |
6.3 |
- |
- |
9/16-18 |
2.40 (61.0) |
1.14 (29.0) |
0.88 (22.4) |
| 2H6SL192 |
EPDM |
Yes |
1/4 |
6.3 |
- |
- |
9/16-18 |
2.40 (61.0) |
1.14 (29.0) |
0.88 (22.4) |
|
| 3H21 |
Standard Buna-N |
Yes |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21115 |
PTFE |
Yes |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21118 |
Neoprene |
Yes |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21143 |
FKM |
Yes |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21146 |
Special Buna-N* |
Yes |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21192 |
EPDM |
Yes |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21236 |
EPDM |
Yes |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21BS |
Standard Buna-N |
Yes |
3/8 |
10 |
- |
2003/8/19 |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21BS115 |
PTFE |
Yes |
3/8 |
10 |
- |
2003/8/19 |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21BS118 |
Neoprene |
Yes |
3/8 |
10 |
- |
2003/8/19 |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21BS143 |
FKM |
Yes |
3/8 |
10 |
- |
2003/8/19 |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21BS192 |
EPDM |
Yes |
3/8 |
10 |
- |
2003/8/19 |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21BS236 |
EPDM |
Yes |
3/8 |
10 |
- |
2003/8/19 |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21BSVAA |
Standard Buna-N |
No |
3/8 |
10 |
- |
2003/8/19 |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21C |
Standard Buna-N |
Yes |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21C143 |
FKM |
Yes |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21C192 |
EPDM |
Yes |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21NV |
Standard Buna-N |
No |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21NV143 |
FKM |
No |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21NV192 |
EPDM |
No |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21SL |
Standard Buna-N |
Yes |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21SL143 |
FKM |
Yes |
3/8 |
10 |
2003/8/18 |
- |
- |
2.56 (65.0) |
1.42 (36.1) |
0.88 (22.4) |
| 3H21VAA |
Standard Buna-N |
|
|
|
|
|
|
|
|
|
