OPW Kamvalok 1600AN系列阳端接头
OPW 1600AN Series Adaptors for Kamvalok® Couplings

OPW 1600AN系列专为与OPW Kamvalok阴端接头配合使用以防止联接/脱卸过程中的液体泄露而设计的。阳端接头内含一个弹簧加载的提升阀,用来保证快速关闭和可靠密封。



1600AN Series Adaptors for Kamvalok® Couplings_PDF下载



1600AN系列是专为OPW Kamvalok阴端接头配合使用以防止联接/脱卸过程中液体泄漏而设计的。阳端接头内含一个弹簧加载的提升阀,用来保证快速关闭和可靠密封。The 1600AN Series Adaptor is specifically designed to mate with OPW Kamvalok- Couplings to help prevent liquid spillage during the connection/disconnection process. The adaptor contains a spring-loaded poppet to assure fast closing and tight seal.

OPW Kamvalok 1700DL Series Coupler

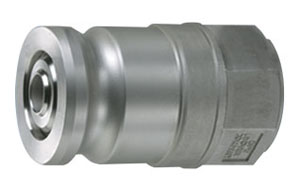

1600AN Series Kamvalok Adaptor



Kamvalok 1600AN系列阳端接头特点

- 提供1 ”, 2”和3”规格
- 高强度结构—可提供铝合金和不锈钢两种材质。不锈钢的耐腐蚀强度可与316不锈钢相当。
- 内螺纹联接—可以与外螺纹管接口或软管接头相配合。
- 弹簧加载的提升阀结构—能保证快速关闭和可靠密封。
- 多种密封材质可供选用—可提供Buna-N, Fluorocarbon, PTFE, EPDM和Chemraz?。

Kamvalok 1600AN系列阳端接头优点

- 整体式结构—消除一切可能泄露的途径。
- 防止漏液—采用提升阀操纵结构,只能在Kamvalok?阴端接头接好的情况下打开,在关闭情况下其设计结构能提供可靠密封。
- 运行可靠—简单的弹簧加载提升阀结构和高强度结构材质能确保长期、可靠的运行。
- 流量条件—通过内置折流挡板来消除湍流,保证均匀的流量和较低的压降。

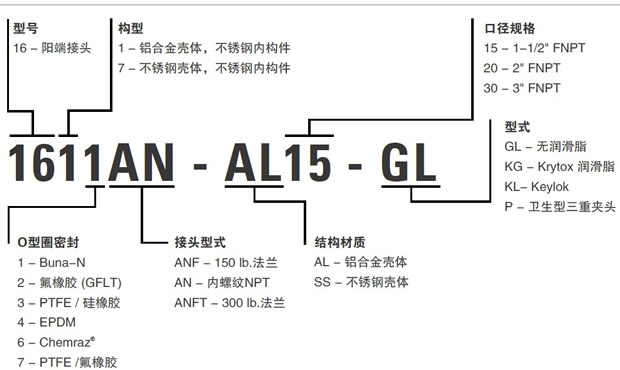

- 订货型号选型



OPW 1600AN Series Adaptor Ordering Specifications:
Stainless Steel Adaptors - Female NPT

产品型号

尺寸
1671AN-SS15 1-1/2" Buna Seal, Stainless Steel
1671AN-SS20 2" Buna Seal, Stainless Steel
1671AN-SS30 3" Buna Seal, Stainless Steel
1672AN-SS15 1-1/2" Viton Seal, Stainless Steel
1672AN-SS20 2" Viton Seal, Stainless Steel
1672AN-SS30 3" Viton Seal, Stainless Steel
1673AN-SS15 1-1/2" Teflon Silicone Seal, Stainless Steel
1673AN-SS20 2" Teflon Silicone Seal, Stainless Steel
1673AN-SS30 3" Teflon Silicone Seal, Stainless Steel
1674AN-SS15 1-1/2" EPT Seal, Stainless Steel
1674AN-SS20 2" EPT Seal, Stainless Steel
1674AN-SS30 3" EPT Seal, Stainless Steel
1676AN-SS15 1-1/2" Chemraz Seal, Stainless Steel
1676AN-SS20 2" Chemraz Seal, Stainless Steel
1676AN-SS30 3" Chemraz Seal, Stainless Steel
1677AN-SS15 1-1/2" Teflon-Viton Seal, Stainless Steel
1677AN-SS20 2" Teflon-Viton Seal, Stainless Steel
1677AN-SS30 3" Teflon-Viton Seal, Stainless Steel
1679AN-SS15 1-1/2" Viton-B Seal, Stainless Steel
1679AN-SS20 2" Viton-B Seal, Stainless Steel
1679AN-SS30 3" Viton-B Seal, Stainless Steel

Aluminum Adaptors - Female NPT

产品型号
尺寸规格
1611AN-AL15 1-1/2" Buna Seal, Alum. & Stainless Steel
1611AN-AL20 2" Buna Seal, Alum. & Stainless Steel
1611AN-AL30 3" Buna Seal, Alum. & Stainless Steel
1612AN-AL15 1-1/2" Viton Seal, Alum. & Stainless Steel
1612AN-AL20 2" Viton Seal, Alum. & Stainless Steel
1612AN-AL30 3" Viton Seal, Alum. & Stainless Steel
1612A-AL07 3/4" Viton Seal, Alum. & Stainless Steel
1613AN-AL15 1-1/2" Teflon Seal, Alum. & Stainless Steel
1613AN-AL20 2" Teflon Seal, Alum. & Stainless Steel
1613AN-AL30 3" Teflon Seal, Alum. & Stainless Steel
1614AN-AL15 1-1/2" EPT Seal, Alum. & Stainless Steel
1614AN-AL20 2" EPT Seal, Alum. & Stainless Steel
1614AN-AL30 3" EPT Seal, Alum. & Stainless Steel
1616AN-AL15 1-1/2" Chemraz Seal, Alum. & Stainless Steel
1616AN-AL20 2" Chemraz Seal, Alum. & Stainless Steel
1616AN-AL30 3" Chemraz Seal, Alum. & Stainless Steel
1619A-AL07 3/4" Viton-B Seal, Alum.
1619AN-AL15 1-1/2" Viton-B Seal, Alum.
1619AN-AL20 2" Viton-B Seal, Alum.
1619AN-AL30 3" Viton-B Seal, Alum.
