OPW专业旋转接头 - Specialty Swivel Joints - OPW Hose Reel Swivels

OPW工程系统公司为满足专业应用专门提供定制设计和制造服务,包括但不仅限以下:

- 软管盘Hose reels
- 公路施工机械Highway construction machinery
- 消防设备Fire fighting equipment
- 机床Machine tools
- 过滤设备Filtration equipment
- 航空地面支持设备Aviation ground support equipment
- 油罐车Tank trucks
- 塑料机械Plastics machinery
- 圆桶灌装Drum fillers
- 水利Hydraulics

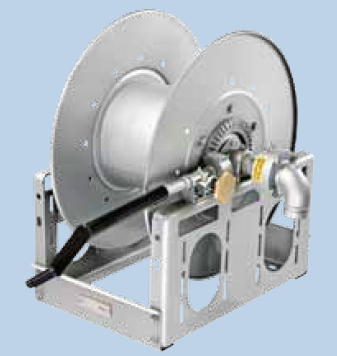

OPW 软管盘 Victaulic®旋转接头



通过正确的旋转接头设计及对客户应用需求的定制化满足,OPW的工程师们可提供富有经验的顾问以帮助您决定适合您特别要求的恰当设计,OPW专业旋转接头有各种材质和尺寸可供选择。如有需要请联系OPW工程部。

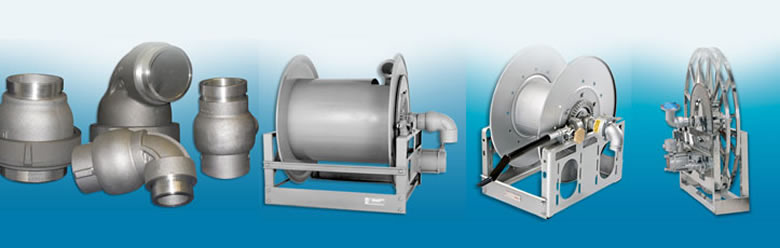

OPW Hose Reel Swivels Joints

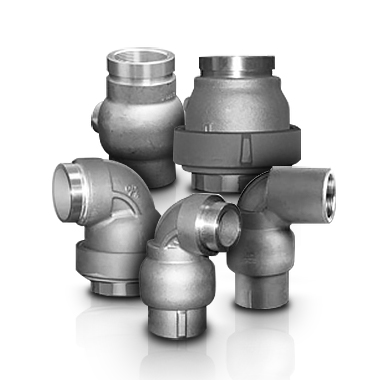

OPW Swivel Joint

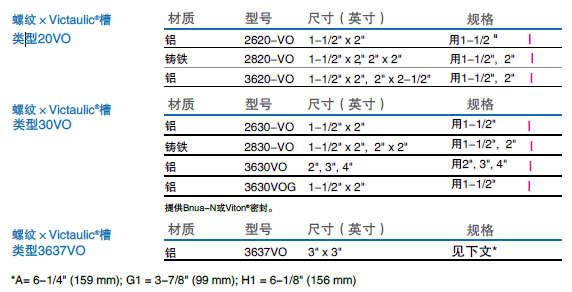

- OPW软管盘/ Victaulic®旋转接头

OPW螺纹×Victaulic®槽类型20VO
OPW螺纹×Victaulic®槽类型30VO
OPW螺纹×Victaulic®槽类型3637VO
Style 20VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
2” FNPT x 2?” Victaulic
Style 30VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
2” FNPT x 2” Victaulic
Style 3627VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
3” FNPT x 3” Victaulic
Style 3637VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
3” FNPT x 3” Victaulic
Style 30 Swivel Joint
Standard Materials: Carbon Steel, 316 Stainless Steel, Aluminum
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
?” to 12” sizes
FNPT, ANSI Flanged
Hose reel applications is an OPW Swivel Joint. OPW produces a variety of Swivel Joints designed specifically for Hose Reel.



OPW 3637VO是90°软管盘,玻璃纤维包裹复合材料,Teflon 内衬,滑动轴 承(非滚珠轴承)。仅提供Bnua-N密封。压力等级是125psi (9kg/cm2)。也 提供直式:OPW 3627VO。



OPW夹套旋转接头_OPW Jacketed Swivel Joints

所有OPW工程系统公司结构钢或不锈钢旋转接头都可以预定夹套。夹套旋转接头通常应用在必须保持相对高温下的应用,例如沥青、硫磺、蜡类和树脂。OPW夹套旋转接头仅在弯管处是全钢夹套,从旋转接头夹套弯管处导来的热量可以给密封处提供足够的温度,那通常是隔热区。高要求应用时,密封处也可以备上夹套。标准蒸汽接头是3/4" FNPT。除了蒸汽,其他材质也可以经OPW夹套旋转接头来加热或冷却产品,例如石油、水、和醇等。


OPW Jacketed Swivel Joints

Any of OPW Engineered Systems fabricated steel or stainless steel swivels canbe ordered jacketed. Jacketed swivels are commonly used in applications where relatively high temperatures must be maintained, such as asphalt, sulfur, waxes, and resins.OPW jacketed swivels feature full steel jackets on the elbow portions only.Conductive heat from the jacketed elbows of the swivel joint provides sufficient heat to the seal area, which is generally field-insulated. For applications considered highly critical, the seal area of the joint can also be jacketed. Standard steam connections are 3/4" FNPT.
Mediums other than steam can also be re-circulated through OPW jacketed swivels to heat or cool products, such as oil, water, and glycol, among others.

可选择材质::钢和不锈钢Steel & Stainless Steel, 铝、球墨铸铁和铜Aluminum, Ductile Iron & Bronze



OPW Hose Reel Swivels

Swivel Styles
Style 20VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
2” FNPT x 2?” Victaulic

Style 30VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
2” FNPT x 2” Victaulic

Style 3627VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
3” FNPT x 3” Victaulic

Style 3637VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
3” FNPT x 3” Victaulic

Style 30 Swivel Joint
Standard Materials: Carbon Steel, 316 Stainless Steel, Aluminum
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene ?” to 12” sizes
FNPT, ANSI Flanged

Downloads
Style 20VO Swivel Joint
Style 30VO Swivel Joint
Style 3620VO Swivel Joint
Style 3627VO Swivel Joint
Style 37VO Swivel Joint
