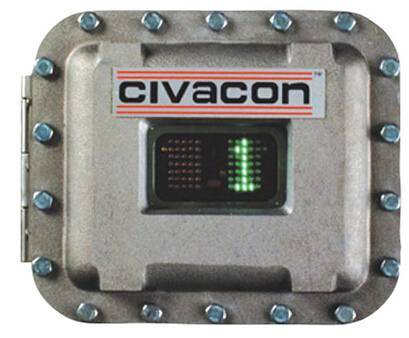

OPW CIVACON 8580系列自诊断式光学-热感应装车控制系统

- 自动识别过量灌装检测系统的类型（光信号或热信号技术）
- 诊断功能还包括接地确认、容许状况和舱室识别等。操作模式显示在LED屏上
- 8580高科技体系减少了发生错误的可能性。
- 能够用在包括最多12个光学探头和8个热感应探头的系统中
- 过量灌装和接地确认采用独立的输出继电器，从而保证超强的灵活性和安全性
- 采用容易读数的高分辨率3" x 5"LED诊断显示器
- 可检测出过量灌装并向终端自动化系统发信号停止灌装

8580光—热控制器—规格

操作温度：-40oF~140oF(-40oC~60oC)
输入要求：120 VAC 60 Hz
15VA（标准），可供240 VAC
输出继电器触点：240 VAC–5A DPDT

响应时间：不超过0.5秒（干-湿转换过程）
电气连接：内置接线端子板
外壳：NEMA 4防爆型
Class 1, Div. 1, Group D

壳体材质：铝
重量：8580型—43 lbs.
认证：UL, CUL (加拿大)，
CENELEC (欧洲)

Order Guide

- Monitors
- 8460-8460- Opti-Therm Rack Monitor with ground verification, 6 Channel and Key Bypass (US Only)
- 8580- Opti-Therm Rack Monitor with ground verification, 6 Channel, LED Display and Bypass (US Only)
- 8580C (Canada)- Rack Monitor with ground verification, 8 Channel, LED Display and Bypass (Canada Only)

- Plug & Cord Sets
- Optic Plug & Cords - 7100-7100, Optic plug with 30’ 10-conductor coiled cord
- 7120-7120, Optic plug with 30’ 10-conductor coiled cord and 7-pin breakaway plug
- 7100SR-7100, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement
- 7120SR-7120, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement and 7-pin breakaway plug
- 7190S-0020, 7100-7100 Optic plug with 30’ coiled cord and 7500-7500 junction box

- Thermistor Plug & Cords
- 7300-7300, Thermistor plug with 30’ 10-conductor coiled cord
- 7300C-7300, Thermistor plug with 30’ 10-conductor coiled cord, CANADA ONLY
- 7300SR-7300, Thermistor plug with 30’ 10-conductor coiled cord for Scully replacement
- 7320-7320, Thermistor plug with 30’ 10-conductor coiled cord and 13-pin breakaway plug
- 7320SR-7320, Thermistor plug with 30’ 10-conductor coiled cord for Scully replacement and 13-pin breakaway plug
- 7390S-0020, 7300-7300 Thermistor Plug with 30’ 10-conductor coiled cord and 7500-7500 Junction box
- 7320-7320 Thermistor Breakaway Plug with 30’ 10-conductor coiled cord, 13-pin breakaway plug and 7510T-7510 Junction box
- 7320SR-7320 Thermistor Breakaway Plug with 30’ 10-conductor coiled cord for Scully replacement, 13-pin breakaway plug and 7510T-7510 Junction box

- Grounding Cable & Clamps
- 7720-7720, Ground Verification Clamp with 40’ straight cord
- 7720-COIL, Ground Verification Clamp with 30’ coiled cord
- 7620-7620, Ground Verification Plug & Cord Set for dual ball application with 30’ straight cord
- 7620-COIL, Ground Verification Plug & Cord Set for dual ball application with 30’ coiled cord

- Junction Boxes
- 7500-7500, Junction Box for Optic, Thermistor and Ground verification Plug & Cord Sets (Non-Breakaway)
- 7540-7540, Junction Box with 7-pin socket for Cane Probes or Breakaway Optic Plug & Cord Sets
- 7510T-7510, Junction Box with 13-pin socket for Breakaway Thermistor Plug & Cord Sets

- Options
- 8580, Opti/Therm Rack Monitor with Ground verification, 6 Channel, LED Display and Bypass (US Only)
- 7150-7150, Optic Plug Hanger
- 7350-7350, Thermistor Plug Hanger
- 1386-1386, Opti/Therm Rack Monitor Tester
