OPW CIVACON 8130系列光学装车控制器代理
OPW CIVACON 8130 Series Optic Rack Monitors
Optic Rack Monitor Model 8130 for Bottom & Top Loading



OPW CIVACON 8130系列光学装车控制器可与多达8个相兼容的光学液位传感器或机载监视器共同工作,用来监控运输车辆或其他储罐内的液位状况。IVACON 8130 型光学防溢流及静电接地检测器可同时进行防溢流和静电接地检测,它采用工业标准级的光学信号可同时检测12 个配光学防溢流传感器的油仓。它具有工作可靠、易于安装、重量轻等特点。The 8130 Series Optic Rack Monitor can be used with up to eight compatible optic liquid-level sensors or onboard monitors to monitor the status of liquid in transports or other storage tanks. The 8130 Series uses industry-standard optic signal format. A unique pulsed and intrinsically safe electrical signal is generated by the control panel and transmitted to the sensors via a coiled cord and optic format plug.

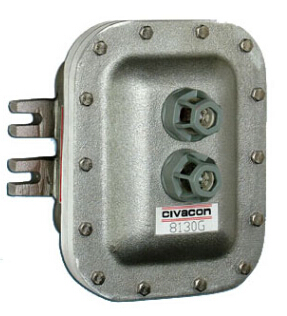

OPW 8130 Optic Overfill Protection Monitor



OPW CIVACON 8130系列采用工业标准的光学信号格式。由控制器产生的独特的脉冲本质安全电气信号通过螺旋型电缆线和光学制式插头传送到传感器上。

OPW 8130 Optic Overfill Protection Monitor

带状态指示灯的防爆型光学控制器,过量灌装检测和接地信号是分别发送到泵的控制系统上的。在8150型上还可以配置旁路开关。Explosion-proof optic monitor with status lights.The overfill detection and ground verification are signaled to the pump control system separately. Can also be provided with a by-pass switch, model 8150.

OPW 8130 Optic Overfill Protection Monitor
8100系列光学管架控制器—规格

操作温度:-40oF~158oF(-40oC~70oC)
输入要求:120 VAC 60 Hz
10VA(标准);可提供240 VAC

输出继电器触点:240 VAC – 5A DPDT
响应时间:不超过0.5秒(干-湿转换过程)
电气连接:内置接线端子板

外壳:NEMA 7防爆型
壳体材质:铝合金
重量:8130型– 32 lbs,
认证:FM,CSA

Order Guide

- Monitors
- 8130-8130 Optic rack monitor with indicator lamps, integrated ground verification
- 8150-8150 Optic rack monitor with indicator lamps, ground verification and "Smart Remote" tamper-resistant keyed bypass switch

- Optic Plug & Cords
- 7120-7120, Optic plug with 30’ 10-conductor coiled cord and 7-pin breakaway plug
- 7100SR-7100, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement
- 7120SR-7120, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement and 7-pin breakaway plug
- 7190S-0020, 7100-7100 Optic plug with 30’ coiled cord and 7500-7500 junction box
- 7120-7120 Optic Breakaway Plug with 30’ coiled cord and 7540-7540 breakaway junction box

- Grounding Cable & Clamps
- 7720-7720, Ground Verification Clamp with 40’ straight cord
- 7720-COIL, Ground Verification Clamp with 30’ coiled cord
- 7620-7620, Ground Verification Plug & Cord Set for dual ball application with 30’ straight cord
- 7620-COIL, Ground Verification Plug & Cord Set for dual ball application with 30’ coiled cord

- Junction Boxes
- 7500-7500, Junction Box for Optic, Thermistor and Ground verification Plug & Cord Sets (Non-Breakaway)
- 7540-7540, Junction Box with 7-pin socket for Cane Probes or Breakaway Optic Plug & Cord Sets
- 7540-8X30, Junction Box with 7-pin socket for Breakaway Optic Plug & Cord Sets, Includes bypass connection for 8130 Optic Rack Monitor (Does NOT include BCU-2)

- Options
- 8150-120, 8130-120 Optic Rack Monitor with Ground Verification, Red/Green Indicator Lights, Includes 7560-7560 Junction Box and one BCU-2 Bypass Control Unit
- 7150-7150, Optic Plug Hanger
- 7560-7560, Junction Box with bypass connection for 8150 Optic Rack Monitor (Does not include BCU-2 Bypass Control Unit)
- BCU-2, Bypass Control Unit for 8150 Optic Rack Monitor (7560-7560 or 7540-8X30 Junction Box required)
- 1386-1386, Opti/Therm Rack Monitor Tester
