OPW IN-LINE BREAKAWA Coupling ILB-5紧急拉断
OPW ILB-5 In-Line Breakaway Coupling for Heavy Duty Truck/Bus refueling applications
进口NGV CNG 1寸紧急拉断阀



OPW在线联接切断装置ILB-5 - 重型卡车/巴士用 管线拉断阀ILB-5 重型卡车/巴士用。OPW公司开发了这种适用于重载卡车和公交巴士NGV燃料补加操作的在线联接切断装置。在不同进口压力条件下这种装置都能可靠工作。OPW has developed an in-line breakaway that can be used in heavy-duty truck and bus NGV refueling applications. This unit will function consistently, independent of the inlet pressure.

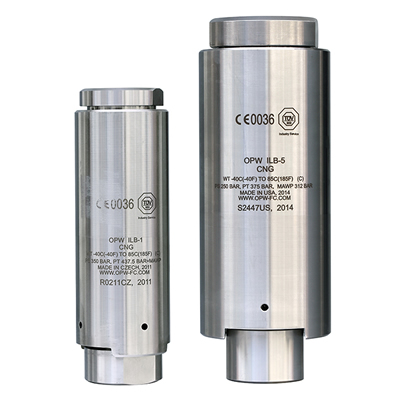

OPW In-Line Breakaway Coupling ILB-5 - Heavy-Duty Truck/Bus
OPW ILB-5 Heavy Duty CNG Truck & Bus In-Line Breakaway Coupling


结构材质
主体:不锈钢
内部构件:不锈钢
密封:专为高压NGV类用途设计的特殊配方聚合物和弹性材料

性能特点

- 耐用、抗腐蚀的材质结构 -不锈钢和特殊镀复的钢材结构提高了在严酷环境条件下使用的耐用性和抗腐蚀能力。
- 可重新联接使用的设计结构 – 各项组件可以重复使用,从而节约了维修费用。
- 新型的阀门系统 – 这种管线切断装置中的密封系统可最大限度地减少在发生车辆意外移动离开情况下泄放出来的气体量。

-高流量/超快灌装能力 – 这是OPW公司所能提供的最大流量的管路断开装置。它能为大型油箱车辆提供快速灌装能力。其内部密封件是专门设计以符合快速NGV灌装的要求的。

- 便于安装 – 在线管路切断装置中设计了SAE-10 O形圈,很容易安装到加油机和喷嘴之间的管路中。
- 每件产品单独进行泄漏测试和检验,并附有可跟踪的系列号
- 联接断开时的受力值 – 150磅力(668牛顿)

规格:
最低流量:3000磅/吋2压力下时为5500标准呎3/分钟
温度范围:-40℉-185℉ (-40℃-85℃)
重量:5磅(2.26千克)
Cv:3.6
设计压力:5000磅/吋2(345巴)

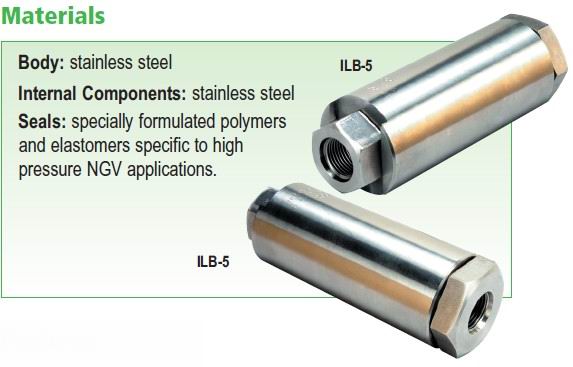

材质:
阀体Body: stainless steel不锈钢
Internal Components: stainless steel
密封Seals: specially formulated polymers and elastomers specific to high pressure NGV applications.


规格参数:

◆ Durable, Corrosion-Resistant Construction - Stainless steel and specially plated steel construction
provide improved durability and corrosion resistance in harsh environments.
◆ Reconnectable Design - Allows the component to be reused, reducing maintenance costs.
◆ Innovative Valve System - The sealing system in this breakaway minimizes the amount of vent gas
released during a drive-away incident.
◆ High-Flow/Super Fast Fill Capacity - This is OPW's fastest flowing breakaway. This breakaway will
provide quick fueling of large storage vehicles. Internal seals are specifically designed to meet the demands of fast-fill NGV fueling.

◆ Easy Installation - The in-line breakaway has SAE-10 O-ring fittings for easy installation in line between the dispenser and nozzle.
◆ Individually Inspected, Leak and Breakaway Tested, with Traceable Serial Numbers.
◆ Disconnection Force - 150 lbs. (668 N).
Specifications:
Min. Flow Rate: 5500 SCFM @ 3000 psid
Temperature Range: -40° F to 185° F (-40° C to 85° C)
Weight: 5 lbs (2.26kg)
Cv: 3.6
Design Pressure: 5000 psi (345 Bar)

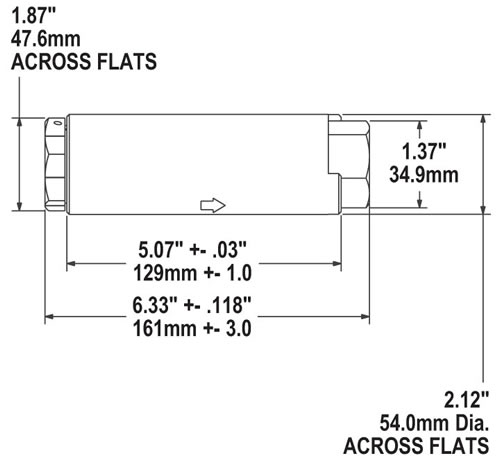

Dimensions产品尺寸:

◆ Ordering Specifications

Recommended to be used with the CC250, CC300, CC600 and CT1000 Series NGV-1 CNG Nozzles

Product No.
Inlet Thread Size
Outlet Thread Size
Max. Allowable
Service Pressure
ILB-5
SAE - 6, 9/16 - 18 UNF (female)
SAE - 6, 9/16 - 18 UNF (female)
4500 psi (P36)
310 bar
