Parker 6600系列快换接头
Parker 6600 Series ISO 7241, Series A Hydraulic Quick Couplings

Parker派克液压快换阳接头以及阴接头,为那些需要经常快速简便地进行管路连接或者断开应用提供了理想的方案。Parker 6600系列阴接头承压（液压）可达5000 psi，能与符合ISO 7241-A标准的6600阳接头进行配合连接。Parker派克6600系列使用双截止形式的锥阀阀芯，并且可与其他符合ISO 7241-A标准的快换进行互换。该系列快换阴接头和阳接头使用碳钢材料，有一系列尺寸可供选择，承压可达5000psi。Parker 6600 系列快换阳接头 - 可与符合ISO 7241-A标准的进行互换，碳钢材料快换，承压（液压）可达5000 PSI。Parker6600 系列阳接头承压（液压）可达5000 psi，能与符合ISO 7241-A 标准的6600阴接头进行配合连接。Parker派克6600系列使用双截止形式的锥阀阀芯，并且可与其他符合ISO 7241-A 标准的快换进行互换。该系列快换阴接头和阳接头使用碳钢材料，有一系列尺寸可供选择，承压可达5000 psi。Parker 6600 Series couplings are very versatile and are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.

Parker 6600 Series Hydraulic Quick Couplings ISO 7241 Series A

技术参数：
- 尺寸范围：1/4” – 1”
- 本体材料：碳钢
- 尾端连接形式：NPTF内螺纹，ORB内螺纹
- 密封可选：丁腈橡胶,EPR,氟橡胶，氯丁橡胶
- 其他快换可选项包括：套筒锁

市场：
- 建筑机械
- 工程机械
- 农机设备

特点/优点：
- 可与全球范围内其他制造商符合ISO 7241-A标准的快换进行互换
- 碳钢快换阴接头的套筒经过硬化处理，从而增加了其耐久性能
- 可选套筒安全锁形式，能够防止意外断开情况

性能特点

大工作压力 (PSI) 至 5000
主体尺寸 (IN) 1/4 至 1
流速 (GPM) 至 50
密封材料 丁腈橡胶
媒介 液压
行业标准 ISO 7241-1 A型
半联轴器 阴接头
低工作温度 (F) -40
高工作温度 (F) 250
阀门样式 锥阀
套管类型 手动套筒
锁定机制 锁止钢球
主体材料 碳钢
螺纹样式 内螺纹
连接类型 NPTF | ORB
电镀 镀锌，白色三价铬钝化
应用 液压|一般用途

应用：
- 液压流体输送
- 卡车拖车连接
- 工程机械应用
- 属具

LITERATURE AND REFERENCE MATERIALS
- 6600 Series Catalog

温度范围：-40℃～+120℃
本体材料：碳钢
密封材料：丁晴橡胶
优势与优点：符合ISO7241-1-A标准要求
压紧式锥阀结构
阴接头套筒和阳接头本体均经过硬化处理，极耐磨损
碳钢镀锌

Parker 6600 Series General Purpose Hydraulic Quick Couplers
ISO 7241 SERIES A INTERCHANGE, STEEL QUICK COUPLINGS (HYDRAULIC) UP TO 5000 PSI - 6600 SERIES NIPPLES
Parker 6600 Series Hydraulic Quick Couplings
Parker 6600 Series ISO 7241, Series A Hydraulic Quick Couplings

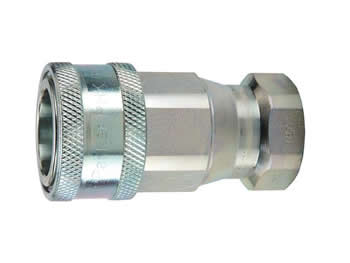

6600系列-阴接头

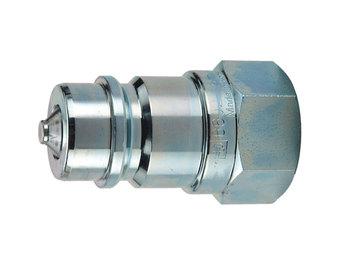

6600系列-阳接头

6600系列-防尘盖

Parker 6600 Series Nipples (hydraulic) up to 5000 psi, connect with ISO 7241 series A, 6600 Series Couplers. Parker's 6600 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series A. These steel couplers and nipples are available in a range of sizes for applications with pressure ranges up to 5000 psi.

Technical Characteristics:
- Sizes: 1/4” – 1”
- Material: Steel
- Port Ends: Female NPTF, Female ORB
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:
- Construction
- Mobile equipment
- Agriculture

Features/Benefits:
- Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241 series A
- Steel nipple body is hardened for durability

Applications:
- Hydraulic fluid transfer
- Truck trailer connections
- Mobile applications
- Attachments

In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
