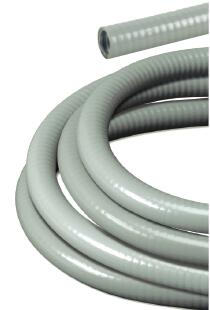

T&B liquidtight systems Thomas & Betts LTA柔性铝导线管
Thomas & Betts Liquidtight Flexible Aluminum Conduit

Liquid-tight flexible metallic conduit



T&B liquidtight systems具有抗腐蚀功能

在腐蚀性工业环境中或者当重量成为主要的考虑因素时——例如在石油平台、咸水应用、造纸、精炼厂、废水处理和食品加工等应用中,可以使用 T&B LTA柔性铝导线管和 ABB防水铝接头。

Liquid-tight flexible metallic conduit



Liquid-tight flexible metallic conduit规格参数性能:

-结构:采用轻质铝芯的灵活性,加上 PVC护套的优势(不受日光、酸和油的影响)。符合 WEEE和 RoHS的要求

-应用:用在腐蚀性环境中或者当重量成为主要的考虑因素时

-标准颜色:机床灰

-工作温度:-20°C到 +80°C

-标准材料 /饰面:导线管芯 -铝;外护套 - PVC


-UL认证



导线管规格 长度 内部弯曲半 重量 (LBS.)/ 重量 (LBS.)

产品编号 (IN.) (FT.) 径(IN.) 100 FT. 50 FT.
LTA50-100 1.2 100 2.5 15 —
LTA75-100 3.4 100 3.0 20 —
LTA100-100 1 100 4.0 29 —
LTA125-50 11.4 50 4.5 — 20
LTA150-50 11.2 50 5.5 — 28
LTA200-50 2 50 7.0 — 36.5
LTA250-25 21.2 25 9.5 188 —
LTA300-25 3 25 11.5 244 —
LTA400-25 4 25 14 332 —



ABB is introducing T&B Liquidtight SystemsTM, a complete solution for flexible metallic cable protection, to the world. Thomas & Betts has been a market leader in flexible metallic liquid-tight conduits, fittings and accessories for many years in North America. ABB is now introducing a complete range of T&B Liquidtight products to the global market that meet international requirements. The ABB T&B Liquidtight Systems flexible metallic conduit solutions include a broad product range that is unmatched in the market, including solutions for general purpose, oil resistant, wide or extreme temperature, and aluminum applications.

T&B liquidtight systems? provides global industrial solutions for Flexible Metallic Conduit (FMC) Protection Systems across a wide variety of application requirements. The T&B liquidtight systemsTM is founded on the market leading Ser. 5200/5300 liquidtight “T&B fittings”, with highest quality flexible metallic conduits and seal gaskets. System ingress protection to UL 50/50E, CSA C22.2 and IEC 60529 IP ratings provides the ideal solution when connecting the T&B liquidtight systemsTM for indoor or outdoor installations to switchgear electrical enclosures, control cabinets, pushbutton stations, motor junction boxes and more.





T&B liquidtight systems - Flexible metallic conduits
Liquid-tight flexible metallic conduit



Flexible metallic conduits

T&B liquidtight systems provides the widest range of flexible metallic conduits, application solutions and trade sizes in the electrical installation marketplace. T&B liquidtight systems are designed to perform in a range of applications that include industrial environments, computers, and those that must meet corrosion-resistant, oil-resistant, extreme-temperature, halogen-free and food-grade requirements.

The T&B liquidtight systems flexible metallic conduits meet a wide range of application requirements unmatched in the market including:

- Applications: General Purpose, Oil Resistant, Wide Temperature, Extreme Temperature and Aluminum
- Trade sizes from 3/8” to 6” (12mm to 155mm)
-Listings and approvals to worldwide standards: UL, CSA, IEC/EN, CE Certifications
- Coordinated performance with liquid-tight fittings and seal gaskets covering:Full range of trade sizes, Ingress protection ratings, Temperature ratings, Core component materials
- Highest quality core materials and jacket extrusions
- Reliable and tested performance to standards requirements: Liquid-tight to oils and water, Chemical resistance, Corrosion resistance,Sunlight (UV) protection,Bending strength,Tensile strength,Crush resistance, Impact resistance,Abrasion resistance,Flexibility and Flammability.



- Liquid-tight flexible metallic conduit


General purpose Conduit
通用管

General purpose solutions include UL, CSA and IEC CE types. These conduits are typically used by machine OEMs, panel builders, infrastructure and commercial installations where electrical code requirements dictate proper use.


Type LTGU General Purpose UL Listed
Liquid-tight Flexible Metallic Conduit Listed to UL 360, CSA 22.2 No. 56 and CE Certified


Type LTGE General Purpose, CE Certified
Liquid-tight Flexible Metallic Conduit Certified to IEC 61386-1, -23


Type LTGC General Purpose, CSA Certified
Liquid-tight Flexible Metallic Conduit Certified to CSA 22.2 No. 56 and CE Certified


Oil Resistant conduit
抗油品腐蚀 耐油

Oil Resistant conduit provides a high performance jacket that performs especially well when regular exposure to oils, cuttings fluids, mild solvents, cleaners and other materials are present.


Type LTOE Oil Resistant, CE Certified
Liquid-tight Flexible Metallic Conduit Certified to IEC 61386-1, -23


Wide Temperature conduits

Wide Temperature conduits are available is UL and IEC CE variants, and provide low and high extended temperature ranges from -55°C to +105°C. Ideal for use in high temperature manufacturing environments and outdoor applications.


Type LTTU Wide Temperature, CE Certified
Liquid-tight Flexible Metallic Conduit Listed to UL 360, CSA 22.2 No. 56 and CE Certified


Type LTTE Wide Temperature, CE Certified
Liquid-tight Flexible Metallic Conduit Certified to IEC 61386-1, -23

Extreme Temperature conduit

Extreme Temperature conduit is IEC CE compliant. The Temperature ratings cover -60C to + 150C. Ideal for use in applications where extremely high temperature wiring is required and outdoor applications.


Type LTXE Extreme Temperature, CE Certified
Liquid-tight Flexible Metallic Conduit Certified to IEC 61386-1, -23

Aluminum conduit

Aluminum conduit is IEC CE compliant. The aluminum systems solutions are ideal for use where light weight raceway or corrosion resistant solutions are required.


Type LTAE Aluminum, CE Certified
Liquid-tight Flexible Metallic Conduit Certified to IEC 61386-1, -23



Flexible metallic conduits


T&B liquidtight systemsTM provides the widest range of flexible metallic conduits, application solutions and trade sizes in the electrical installation marketplace. T&B liquidtight systems are designed to perform in a range of applications that include industrial environments, computers, and those that must meet corrosion-resistant, oil-resistant, extreme-temperature, halogen-free and food-grade requirements. The T&B liquidtight systems flexible metallic conduits meet a wide range of application requirements unmatched in the market including:


Applications: General Purpose, Oil Resistant, Wide Temperature, Extreme Temperature and Aluminum
Trade sizes from 3/8” to 6” (12mm to 155mm)
Listings and approvals to worldwide standards: UL, CSA, IEC/EN, CE Certifications
Coordinated performance with liquid-tight fittings and seal gaskets covering:Full range of trade sizes, Ingress protection ratings, Temperature ratings, Core component materials
Highest quality core materials and jacket extrusions
Reliable and tested performance to standards requirements: Liquid-tight to oils and water, Chemical resistance, Corrosion resistance,Sunlight (UV) protection,Bending strength,Tensile strength,Crush resistance, Impact resistance,Abrasion resistance,Flexibility and Flammability.



Flexible Metallic Conduit
LTGU Data Sheet

LTAE Data Sheet

LTOE Data Sheet

LTTE Data Sheet

LTTU Data Sheet

LTGC Data Sheet

LTGE Data Sheet

LTXE Data Sheet

LTGU Quick Select Table

LTAE Quick Select Table

LTOE Quick Select Table

LTTE Quick Select Table

LTTU Quick Select Table

LTGC Quick Select Table

LTGE Quick Select Table

LTXE Quick Select Table

Links for Stainless Steel Liquidtight Fittings

Product Sheet

Brochure

Cross Reference

Print Ad

Press Release

Links for Quick-ConnectTM Liquidtight Fittings
Product Sheet
