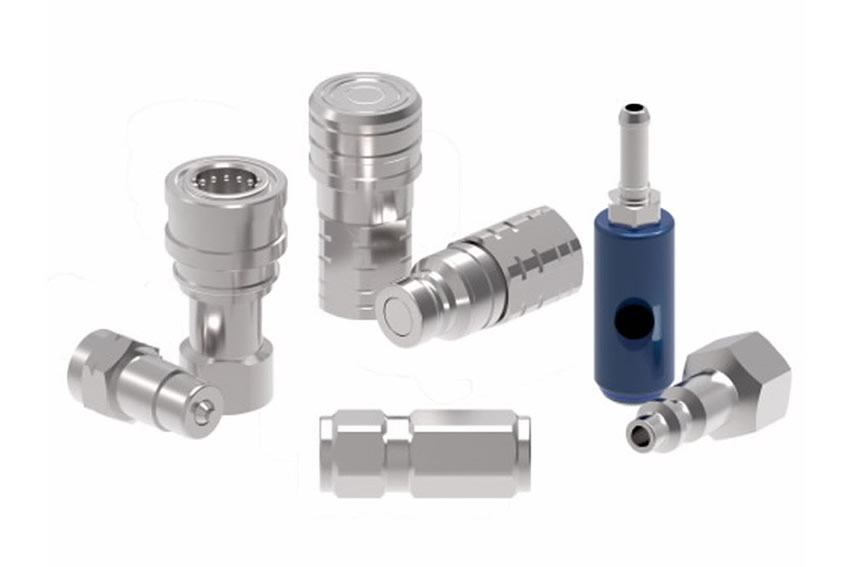

丹佛斯汉森快速接头 Danfoss Hansen quick disconnect couplings
信德迈科技（北京）有限公司产品代理 丹佛斯动力系统签约中国经销商
自 1915 年弗雷德·汉森发明快速接头以来，汉森的名字已成为在流体输送领域设定新行业标准的代名词，在性能、弹性和可靠性方面赢得了全球声誉。丹佛斯汉森快速接头的创新设计可实现更高的流速和优化的流路，从而减少压降并提高整体系统效率。这反过来又降低了应用能耗，减少了系统空间和重量，并减少了组件磨损，最终降低了燃料消耗和拥有成本。作为标准配置，丹佛斯汉森快速断开接头配备 Dura-Kote镀层，可提供出色的防腐蚀保护，可防止红锈长达 1000 小时，从而延长使用寿命并减少维护需求。我们更新的丹佛斯汉森产品线为客户提供了丰富的选择。凭借广泛的材料和尺寸可供选择，再加上优化的密封解决方案，我们的联轴器可根据特定应用的性能和成本要求进行高度定制。 特定应用程序的性能和成本要求。
快速断开接头
zui大化系统正常运行时间
丹佛斯汉森快速断开接头采用zui新的设计创新，可zui大限度地提高关键液压、气动和热管理应用中的易用性和系统正常运行时间。丹佛斯汉森快速断开接头采用碳、不锈钢和黄铜材质，符合或超过行业标准，并提供行业领先的保修。
- 优点 - 快速连接和断开
- 节省时间 - 无需特殊工具
- 高性能 - 超过 ISO 16028 工作压力
- 快速接头提供了一种快速连接和断开管路的方法，而不会损失流体或空气进入系统。
Danfoss Hansen quick disconnect couplings
丹佛斯汉森快速接头
如果设备需要快速组装或需要日常保养或维修，那么快速接头是流体连接的更好选择。当采用快速断开快速接头时，还可以防止昂贵和危险的液体和其他流体的溢出。这有助于更清洁的环境，为更安全的工作条件铺平道路。
FD83系列快速接头
丹佛斯汉森 FD83 接头专为流体输送和电子冷却应用而设计，在这些应用中，全流量、流体兼容性和安全性至关重要。FD83系列快速断开快速接头采用全流量设计，现在有2英寸尺寸和流行的1英寸尺寸的附加配置，以其性能和可靠性而闻名于世。其匝转连接功能允许在没有软管扭转风险或需要额外适配器的情况下进行连接，这也可以防止由于不正确的组装而导致泄漏。
阅读更多
核心 4 液压快速断开装置
丹佛斯有数百种尺寸和样式可供选择，为您的下一个项目提供合适的快速断开快速接头。我们的“Core 4”产品代表了四种zui常见、广泛销售的液压和气动快速断开方式，这些样式易于订购，始终有库存并随时发货。

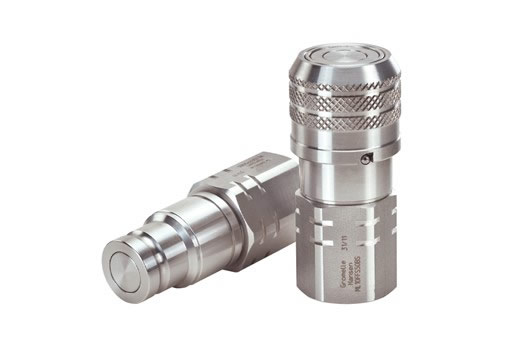

平面/MLFF系列平面快速接头
平面/MLFF系列
FF系列超大流量通过降低油耗来节省成本。
特征：
标准套锁可防止意外断开。
行业领先的流量和工作压力性能。
Guardian Seal 三价锌镀层提供高达 1，000 的耐腐蚀性。
颜色编码环便于识别线路，防止交叉连接。
在压力插头下连接，zui高可达 350 bar。

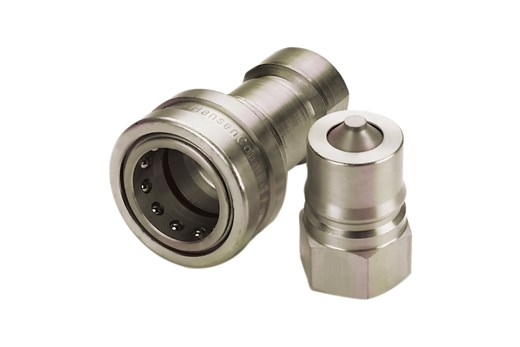

HK系列快速接头
丹佛斯汉森是 1915 年 HK 快速接头的原始设计者，树立了行业标准。
特征：
自密封提升阀设计提供出色的高低压密封。
三价镀锌钢，带不锈钢弹簧、滚珠和挡圈。
聚四氟乙烯背靠密封
提供广泛的定制，以适应所有应用。
领先制造商中流量zui高
更高的流量等同于更高的效率和更低的能耗

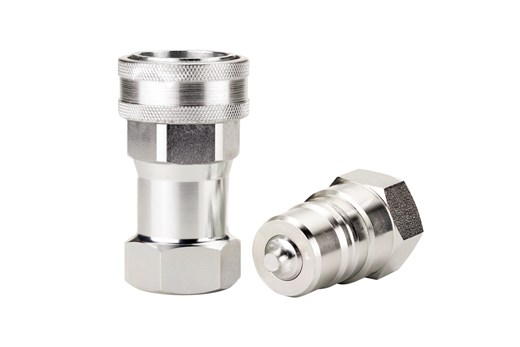

5600系列快速接头
5600系列
丹佛斯 5600 系列提供多种端口配置以及多种带阀和非带阀配置。
特征：
自密封提升阀设计提供出色的高低压密封。
流线型阀门提供zui小的压降。
高电阻碳钢，三价镀锌。
提供广泛的定制，以适应所有应用。
领先制造商中流量zui高

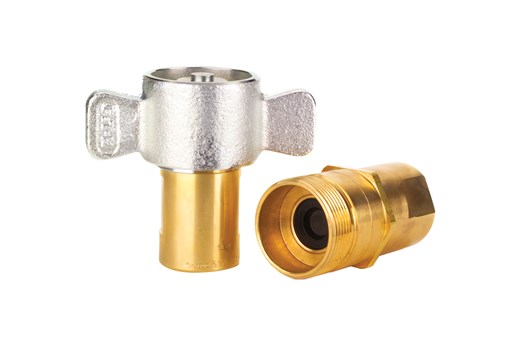

5100 系列快速接头
5100 系列
常见于自卸拖车湿式管路，更高的流量性能可以缩短循环时间并提高生产率。
特征：
管状阀结构，在断开过程中几乎没有流体损失，减少了环境和工人安全隐患。
低空气夹杂物，可在高达 500psi 的压力下连接。
优异的抗振性和耐腐蚀性能。
流量比竞争品牌高出 115%
核心 4 气动快速接头 Pneumatic quick disconnects

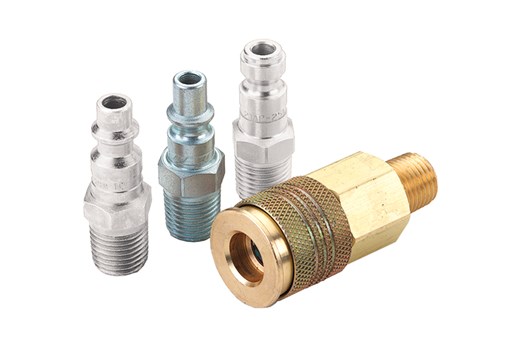

Auto-Flo series气动快速接头
设计具有高流量和易于自动连接的特点。
特征：
Auto-Flo 23 是第一款自动通用快速断开接头，设计用于工业、ARO 210 和 Tru Flate 交换插头/公头。
简单、自动的按压连接设计提供线路的即时连接和断开。
通用设计使Auto-Flo成为极其灵活的快速接头系列。
1000/400/500 系列气动快速接头
1000/400/500 系列
坚固可靠的工业互换快速接头，设计用于压缩空气、气体和液体。
特征：
球锁机构。
可选的套锁可防止意外断开。
所有尺寸均可接受美国工业交换。
400系列接受Tru-Flate交换。
镀镍钢黄铜主体具有高耐腐蚀性。

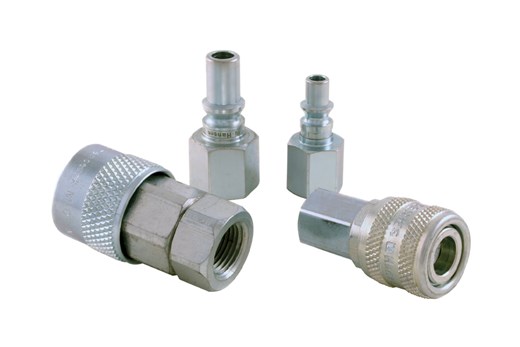

210/310 系列气动快速接头
210/310 系列
丹佛斯 ARO 210/ 310 立交桥具有坚固的耐腐蚀性能。
特征：
丹佛斯的 ARO 210/310 立交桥采用销锁设计，带有合金钢锁销和自动按压连接操作。
三价镀锌碳钢具有高耐用性和卓越的腐蚀性能。

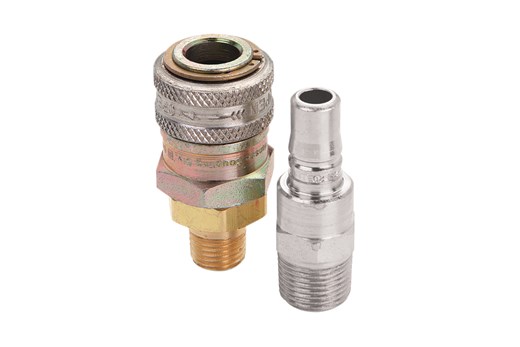

2RL/3RL 系列气动快速接头
2RL/3RL 系列
丹佛斯的 2RL/3RL 环锁系列具有独特的互换开关，专为压缩空气使用而设计。
特征：
高流量。
用旨在防止意外断开的环形锁套进行推动连接。
标准阀体材料：三价镀锌钢。
为什么使用快速断开耦合而不是传统的螺纹连接？
传统螺纹接头：
无关闭系统：断开后泄漏
连接时无法旋转 - 管路扭曲会缩短软管的使用寿命
额外的组装时间
搬运困难，浪费时间拆卸（维护）
频繁断开连接会影响座椅性能，增加泄漏的可能性
快速断开接头：
关闭系统：断开时实现密封
连接时可以旋转，消除软管的压力并延长使用寿命
易于在狭小空间内组装
使用简单快捷（无需工具），省时且经济
提高移动性和维护可及性
丹佛斯全新设计的平面快速断开接头
我们新近重新设计的平面（FF）快速断开接头可在更高的压力和更高的流速下提供更高的性能。丹佛斯的 Flat Face 系列快速断开接头设计用于连接高性能液压管路而不会造成流体损失，并提供更高的压力，以帮助机器制造商满足市场对高压和高脉冲压力解决方案的需求。更新后的平板面快速断开接头可减少压降并减少能量损失，从而降低燃料和能耗。此外，丹佛斯的 Guardian Seal 无镍镀层可在恶劣环境中提供长达 1，000 小时的出色耐腐蚀性。
应用
农业
替代能源
商用车
石油和天然气
建筑与采矿
谨慎的制造和加工
物料搬运
多板平面耦合系统
我们创新的多板系统 （Multi-FF） 扩展了丹佛斯平面快速接头的所有优势。我们的全新系统专为任何需要多个液压流体连接进行动力传输的应用而设计，可同时支持两到六个平面快速接头。
Danfoss Hansen quick disconnect couplings
Quick disconnect couplings
Quick disconnect couplings
Maximize system uptime
Featuring the latest design innovations, Danfoss Hansen quick disconnect couplings maximize ease of use and system uptime in key hydraulic, pneumatic and thermal management applications. Offered in carbon, stainless steel and brass, Danfoss Hansen quick-disconnect couplings meets or exceeds industry standards and are backed by the industry's leading 3-year warranty.
Benefits - Quick connect and disconnect
Time savings - No need for special tools
High performance - Exceeds ISO 16028 operating pressures
Couplings provide a means of quickly connecting and disconnecting a line without a loss of fluid or entrance of air into a system.
If equipment needs to be assembled quickly or if it needs routine servicing or repair, then a coupling is a better choice for a fluid connection.
When incorporating Quick Disconnect couplings, spillage of costly and dangerous liquids and other fluids can also be prevented. This contributes to a cleaner environment, making way for safer working conditions.
FD83 series quick-disconnect couplings
Danfoss Hansen FD83 couplings are designed for fluid transfer and electronics cooling applications where full flow, fluid compatibility and safety are essential.
FD83 series quick-disconnect couplings with a full-flow design, now available in a 2-inch size and additional configurations of the popular 1-inch size, are known globally for their performance and reliability.
Their turn-to-connect feature allows connections to be made without the risk of hose torsion or the need for additional adapters, which also prevents leaks due to incorrect assembly.
Read more
Core 4 hydraulic quick disconnects
With hundreds of sizes and styles to choose from, Danfoss has the right quick disconnect couplings for your next project. Our “core 4” offering represent the four most common, widely sold hydraulic and pneumatic quick disconnect styles that are easy to order, always in stock and ready to ship.
Flat Face / MLFF series
Flat Face / MLFF series
FF series superior flow saves cost by reducing fuel consumption.
Features:
Standard sleeve lock prevents accidental disconnection.
Industry leading flow and operating pressure performance.
Guardian Seal zinc trivalent plating offers up to 1,000 of corrosion resistance.
Color coded rings allow for easy identification of lines to prevent cross connecting.
Connect under pressure plug able to connect up to 350 bar.
HK series
HK series
Danfoss Hansen was the original designer of the HK coupling in 1915 setting the industry standard.
Features:
Self-sealing poppet valve design provides excellent high and low pressure sealing.
Zinc trivalent plated steel with stainless steel springs, balls and retaining rings.
PTFE back up seal
Wide array of customizations offered to suit all applications.
Highest flow among leading manufacturers
Higher flow equates to higher efficiency and less energy consumption
5600 series
5600 series
Danfoss' 5600 Series offers a wide array of port configurations and multiple valved and non-valved configurations.
Features:
Self-sealing poppet valve design provides excellent high and low pressure sealing.
Streamlined valving provides minimum pressure drop.
High resistance carbon steel with zinc trivalent plating.
Wide array of customizations offered to suit all applications.
Highest flow among leading manufacturers
5100 series
5100 series
Commonly found on dump trailer wet lines, higher flow performance can reduce cycle time and increase productivity.
Features:
Tubular valve construction for virtually no fluid loss during disconnection, reducing environmental and worker safety hazards.
Low air inclusions and connect under pressure capability up to 500psi.
Excellent vibration resistance and corrosion performance.
Up to 115% more flow over competing brands
Core 4 Pneumatic quick disconnects
Auto-Flo series
Auto-Flo series
Designed with high flow and easy automatic connections.
Features:
Auto-Flo 23 is the first automatic universal quick disconnect coupling designed to operate with Industrial, ARO 210 and Tru Flate Interchange plugs/males.
Easy, automatic push-to-connect design provides instantaneous connection and disconnection of lines.
The universal design makes Auto-Flo an extremely flexible coupling series.

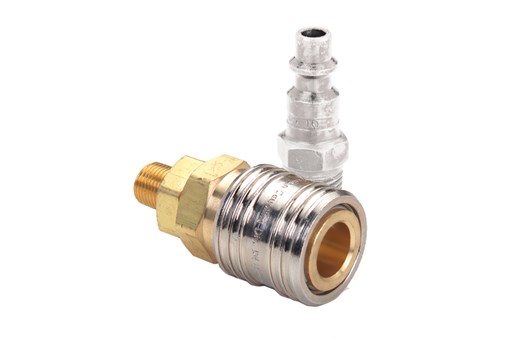

1000/400/500 series
1000/400/500 series
Industrial Interchange coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.
Features:
Ball latching mechanism.
Optional sleeve lock prevents accidental disconnection.
All sizes accept US Industrial Interchange.
400 series accepts Tru-Flate Interchange.
Brass body with nickel plated steel offers high corrosion resistance.
210/310 series
210/310 series
Danfoss ARO 210/ 310 interchange offers rugged corrosion resistant performance.
Features:
Danfoss' ARO 210/310 interchange offers a pin-lock design with alloy steel locking pins and automatic push-to-connect operation.
Zinc trivalent plated carbon steel offers high durability with superior corrosion performance.
2RL/3RL series
2RL/3RL series
Danfoss' 2RL/3RL ring lock series have a unique interchange which are designed for use with compressed air.
Features:
High Flow capacity.
Push to connect with a ring lock sleeve designed to prevent accidental disconnection.
Standard body material: Zinc trivalent plated steel.
Why use a quick disconnect coupling over a conventional threaded connection?
Traditional threaded fitting:
No shut-off system: leakage after disconnection
Cannot rotate while connected - line twisting decreases life of hose
Additional assembly time
Difficult handling, waste of time to disassemble (maintenance)
Frequent disconnection effects seating performance, increases likelihood of leaking
Quick disconnect coupling:
Shut-off system: sealing achieved upon disconnection
Can rotate while connected, taking stress out of hose and extending life
Ease of assembly in tight spaces
Easy and fast to use (without tool), time saving and economical
Increased mobility and access for maintenance
Danfoss' newly redesigned Flat Face quick disconnect couplings
Our newly redesigned Flat Face (FF) quick disconnect couplings provide greater performance at higher pressures along with higher flow rates.
Danfoss' Flat Face series quick disconnect couplings are designed to connect top performing hydraulic lines without fluid loss and offer increased pressures to help machine manufacturers meet market demand for high pressure and high impulse pressure solutions.
The renewed flat faced quick disconnect couplings reduce pressure drops and decrease energy loss, resulting in lower fuel and energy consumption. Plus, Danfoss' Guardian Seal nickel-free plating offers outstanding corrosion resistance in tough environments for up to 1,000 hours.
Applications
Agriculture
Alternative energy
Commercial vehicle
Oil and gas
Construction & mining
Discreet manufacturing & processing
Material handling
Multiplate flat face coupling system
Our innovative multiplate system (Multi-FF) extends all the benefits of Danfoss flat face couplings. Designed for any application demanding multiple hydraulic fluid connections for power transmission, our brand new system supports two to six flat face couplings simultaneously.丹佛斯汉森快速接头 Danfoss Hansen quick disconnect couplings -- 信德迈科技（北京）有限公司产品代理 丹佛斯动力系统签约中国经销商
|
