Autoclave Engineers Manual Needle Valves
手动针型阀 PDF Catalog

Parker Autoclave Engineers阀门按照设计规格可在高达150000psi（10342bar）的压力下安全可靠地工作。下面的几种重要特性确保阀门在多种可变条件下仍然安全可靠。Parker Autoclave Engineers valves are designed to operate safely and reliably at pressures to 150,000 psi (10342 bar). Several important features make this dependable service possible under widely varying conditions.

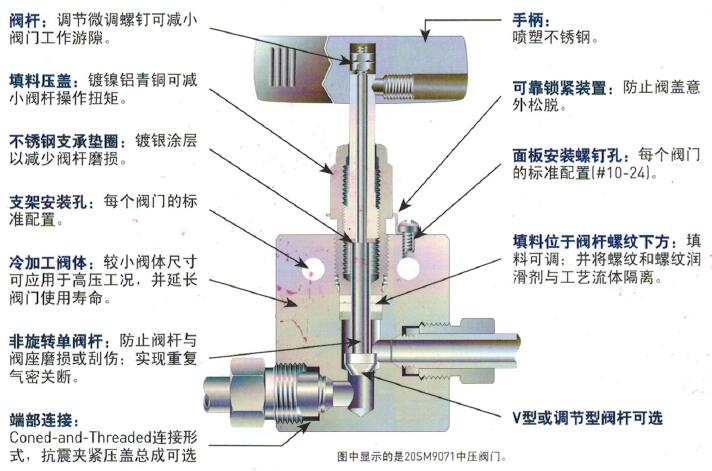

非旋转阀杆: 防止阀杆阀座在阀门开启和关闭时产生磨损。

金属对金属阀座密封: 实现气密性关闭，在磨蚀性流体应用中延长阀杆/阀座寿命，能够承受反复开关操作，且抗腐蚀性极佳。

PTFE材质填料：确保阀杅与阀体间的密封。阀杆衬套和填料压盖材质可延长螺纹寿命，减小阀门操作扭矩。

手动阀门选项：为满足特殊应用要求，定制化 Parker AutoclaveEngineers阀门具备以下选项。五种阀体形式、多种材质和阀杆类型、极端温度模式、磨蚀应用选项、面板安装和多种手柄形式可选。

规格参数：

类型：两通阀、三通阀/直线型、角型
最大工作压力：150,000 psi (10342 bar)
工作温度范围：-423°F (-252°C) 到1200°F (649°C)
连接尺寸：英制：1/16”到1-1/2”；公制：10mm到16mm
流通尺寸：0.055”（1.4mm）到0.937”（23.8mm）
材质：316SS

针阀 - Needle Valves
	低压针阀 (SpeedBite)10V 和 SW 系列低压针阀至 15,000 psi (1034 bar) 这些阀门采用非旋转上升杆设计，工作压力高达 15,000 psi (1034 bar)。管道尺寸范围从 1/8" 到 1/2"。管道连接采用 Parker Autoclave Engineers Speed Bite 单套圈设计。工作温度范围为 0°F 至 650°F（-17.8°C 至 343°C）。316 不锈钢结构，可提供其他选项。 Low Pressure Needle Valves (SpeedBite) 10V & SW Series to 15,000 psi (1034 bar) These valves are a non-rotating rising stem design, working pressures to 15,000 psi (1034 bar). Tubing sizes range from 1/8" to 1/2". Tubing connections utilizes Parker Autoclave Engineers Speed Bite single ferrule design. Operating temperatures from 0°F to 650°F (-17.8°C to 343°C). 316 stainless steel construction, other options available.
	SM 系列中压针阀至 20,000 psi (1379 bar) 这些阀门采用非旋转上升杆设计，工作压力高达 20,000 psi (1379 bar)。管道尺寸范围从 1/4" 到 1-1/2"。管道连接采用 Parker Autoclave Engineers 锥形和螺纹设计。工作温度范围为 -423°F 至 1200°F（-252°C 至 649°C）。316 不锈钢结构，可提供其他选项。   Medium Pressure Needle Valves SM Series to 20,000 psi (1379 bar) These valves are a non-rotating rising stem design, working pressures to 20,000 psi (1379 bar). Tubing sizes range from 1/4" to 1-1/2".Tubing connections utilizes Parker Autoclave Engineers coned and threaded design. Operating temperatures from -423°F to 1200°F (-252°C to 649°C). 316 stainless steel construction, other options available.
	QS（快装）系列针阀 15,000 PSI（1034 bar） 这些阀门采用非旋转上升杆设计，所有尺寸的工作压力均达到 15,000 psi (1034 bar)。管道尺寸范围从 1/4" 到 1"。管道连接采用 Parker Autoclave Engineers Quick Set 单套圈设计，由高强度不锈钢制成。工作温度范围为 0°F 至 650°F（-17.8°C 至 343°C）。 QS (Quick Set) Series Needle Valves 压力15,000 psi (1034 bar) These valves are a non-rotating rising stem design with working pressures to 15,000 psi (1034 bar) in all sizes. Tubing sizes range from 1/4" to 1". Tubing connections utilizes Parker Autoclave Engineers Quick Set single ferrule design constructed of high strength stainless steel. Operating temperatures from 0°F to 650°F (-17.8°C to 343°C).
	高压针阀：30SC、43SC、30VM、40VM、60VM、100VM、150V 系列至 150,000 psi (10342 bar) 所有系列均采用非旋转上升阀杆设计，工作压力高达 150,000 psi (10,345 bar)。管道尺寸范围从 1/4" 到 1"。管道连接采用 Parker Autoclave Engineers 锥形和螺纹设计。工作温度范围为 -423°F 至 1200°F（-252°C 至 649°C）。316 不锈钢结构，可提供其他选项。 High Pressure Needle Valves - 30SC, 43SC, 30VM, 40VM, 60VM, 100VM, 150V Series to 150,000 psi (10342 bar) All series are a non-rotating rising stem design, working pressures up to 150,000 psi (10,345 bar). Tubing sizes range from 1/4" to 1".Tubing connections utilizes Parker Autoclave Engineers coned and threaded design. Operating temperatures from -423°F to 1200°F (-252°C to 649°C). 316 stainless steel construction, other options available.
	P 系列 NPT 型针阀 - 高达15,000 psi (1034 bar) 高达15,000 psi (1034 bar)所有系列均采用非旋转上升阀杆设计，工作压力高达 15,000 psi (10,345 bar)。具有从 1/4" 到 1" 的 FNPT 管道连接。工作温度范围为 0°F 至 400°F（-17°C 至 204°C）。316 不锈钢结构，可提供其他选项。   P Series NPT Style Needle Valves - Pressures to 15,000 psi (1034 bar) All series are a non-rotating rising stem design, working pressures up to 15,000 psi (10,345 bar). Featuring FNPT pipe connections from 1/4" to 1". Operating temperatures from 0°F to 400°F (-17°C to 204°C). 316 stainless steel construction, other options available.
	微型阀，针型 - MVE 和 MV 系列 1/16" 和 1/8" 针阀，压力达 15,000 psi (1034 bar) 这些阀门采用旋转上升杆设计，工作压力达 15,000 psi (1034 bar)。管道尺寸范围从 1/16" 到 1/8"。管道连接采用 Parker Autoclave Engineers Speed Bite 单套圈设计。工作温度范围为 0°F 至 650°F（-17.8°C 至 343°C）。316 不锈钢结构，可提供其他选项。   Mini Valves, Needle Style - MVE & MV Series 1/16" & 1/8" Needle Valves to 15,000 psi (1034 bar) These valves are a rotating rising stem design, working pressures to 15,000 psi (1034 bar). Tubing sizes range from 1/16" to 1/8".Tubing connections utilizes Parker Autoclave Engineers Speed Bite single ferrule design. Operating temperatures from 0°F to 650°F (-17.8°C to 343°C). 316 stainless steel construction, other options available.
	瓶阀，针型 - 低压至 10,000 psi (690 bar) BTV 系列阀门设计提供从 1/8" 到 1/2" NPT 的外螺纹 NPT 螺纹入口连接。NPT 或低压针阀中的出口连接，带有公 NPT 入口低压管至 1/4"。上升杆/棒料本体设计。设计用于远程采样的样品瓶和钢瓶。   Bottle Valves, Needle Style - Low Pressure to 10,000 psi (690 bar) BTV Series valve design provides male NPT threaded inlet connections from 1/8" to 1/2" NPT. Outlet connections in NPT or low pressure needle valves with male NPT inlet low pressure tube to 1/4". Rising stem/bar stock body design. Designed for use with sample bottles and cylinders for remote sampling.
	小流量针阀 - VRMM 系列针阀阀门 ，压力高达 60,000 psi (4137 bar) 用于精确控制压力高达 60,000 psi (4137 bar) 的小流量的阀门。管道尺寸从 1/8" 到 3/8"。工作温度范围为 -423°F 至 1200°F（-252°C 至 649°C）。316 SS 结构，可提供其他选项。 Micrometering Needle Valves - VRMM Series Valves to 60,000 psi (4137 bar) Valves for precise control of small flows with pressures up to 60,000 psi (4137 bar). Tubing sizes from 1/8" to 3/8". Operating temperatures from -423°F to 1200°F (-252°C to 649°C). 316 SS construction, other options available.
	阻塞和排放针阀 - MVBB 系列，压力为 20,000 psi (1379 bar) 用于阻塞、排放和校准的设计。该阀门采用旋转上升杆设计，额定压力为 20,000 psi (1379 bar)。管道尺寸 1/4"。管道连接采用锥形接头设计。工作温度范围为 0°F 至 800°F（-17.8°C 至 427°C）。316 不锈钢结构，其他选项可用。 Block and Bleed Needle Valve - MVBB Series to 20,000 psi (1379 bar) Design for blocking, bleeding, and calibration. This valves is a rotating rising stem design, rated to 20,000 psi (1379 bar). Tubing size 1/4".Tubing connections utilizes the coned joint design. Operating temperatures from 0°F to 800°F (-17.8°C to 427°C). 316 stainless steel construction, other options available.
	双截止放气针型阀 - 20DBNV 系列至 20,000 psi (1379 bar) 设计用于阻塞、放气和校准。该阀门采用旋转上升杆设计，额定压力为 20,000 psi (1379 bar)。管道尺寸 1/4-1"。管道连接采用锥形接头设计。工作温度范围为 0°F 至 450°F（-17.8°C 至 232°C）。316 不锈钢结构，其他选项可用。 Double Block and Bleed Needle Valve - 20DBNV Series to 20,000 psi (1379 bar) Design for blocking, bleeding, and calibration. This valves is a rotating rising stem design, rated to 20,000 psi (1379 bar). Tubing size 1/4-1". Tubing connections utilizes the coned joint design. Operating temperatures from 0°F to 450°F (-17.8°C to 232°C). 316 stainless steel construction, other options available.
	井口计量阀，针型 - 阀 压力高达 30,000 (2068 bar) Parker Autoclave Engineers 井口计量阀和放气阀设计用于在 30,000 psi (2068 bar) 的最大工作压力下实现可靠??的关闭服务。井口压力表和放气阀是标准的 316 不锈钢材料。可应要求提供特殊材料。   Wellhead Gauge Valve, Needle Style - Valve Pressures to 30,000 (2068 bar) Parker Autoclave Engineers Wellhead Gauge & Bleed valves are designed for reliable shut-off service at a maximum working pressure of 30,000 psi (2068 bar). The Wellhead Gauge and Bleed Valves are standard in 316 stainless steel material. Special materials available on request.
	极端温度针型阀 - HT、LT 和 PV 系列从 -423°F 到 1200°F（-252°C 到 649°C） 用于极端高温和低温操作的阀门选项。扩展的填料外壳允许在 -423°F 至 1200°F（-252°C 至 649°C）的温度范围内运行。   Extreme Temperature Needle Valves HT,LT, & PV Series from -423°F to 1200°F (-252°C to 649°C) Valve option for extreme high and low temperature operation. The extended packing housing allows operation from -423°F to 1200°F (-252°C to 649°C).
	分流针阀 分流阀，针型 - 20DV 系列至 20,000 psi (1379 bar) 用于将流量从入口分流至两个出口之一，工作压力为 20,000 psi (1379 bar)。管道尺寸范围从 9/16" 到 1"。管道连接采用 Parker Autoclave Engineers 中压锥形和螺纹设计。工作温度范围为 -423°F 至 1200°F（-252°C 至 649°C）。316 不锈钢结构，可提供其他选项。 Diverter Valve, Needle Style - 20DV Series to 20,000 psi (1379 bar) Used to divert flow from inlet to one of two outlets, working pressures to 20,000 psi (1379 bar). Tubing sizes range from 9/16" to 1".Tubing connections utilizes Parker Autoclave Engineers medium pressure coned and threaded design. Operating temperatures from -423°F to 1200°F (-252°C to 649°C). 316 stainless steel construction, other options available.
	高压轭阀，针型 - Y 系列至 50,000 psi (3447 bar) 超重型工厂级升降杆阀，工作压力至 50,000 psi (3447 bar)。管道尺寸范围从 9/16" 到 1"。管道连接采用 Parker Autoclave Engineers 中压或高压锥形和螺纹设计。工作温度范围为 0°F 至 600°F（-17.8°C 至 316°C）。316 不锈钢结构，可提供其他选项。 High Pressure Yoke Valves, Needle Style - Y Series to 50,000 psi (3447 bar) Extra heavy duty plant grade rising stem valve, working pressures to 50,000 psi (3447 bar). Tubing sizes range from 9/16" to 1".Tubing connections utilizes Parker Autoclave Engineers medium or high pressure coned and threaded design. Operating temperatures from 0°F to 600°F (-17.8°C to 316°C). 316 stainless steel construction, other options available.
	选项 针阀选项和可选材料 针阀 有许多标准选项。材料、阀杆类型、执行器、填料、连接、手柄和安装。其他可应要求提供。 Options Needle Valve Options and Optional Materials A number of standard options available for the needle valves. Materials, stem types, actuators, packing, connections, handles, and mounting. Others available upon request.

High Pressure Needle Valves on Autoclave Engineers, Fluid Components Div. Of Snap-tite Inc.

High Pressure Needle Valves

Low Pressure Valves

10V, SW, P, BTV Series to 15000 psi (1034 bar)
These valves are a non-rotating rising stem design, working pressures to 15,000 psi (1034 bar). Tubing sizes range from 1/8" to 1". Tubing connections utilize Autoclave's SpeedBite single
ferrule design. Operating temperatures from 0°F to 650°F (-17.8°C to 343°C). 316 stainless steel
construction, other options available.

Medium Pressure Valves

SM Series to 20000 psi (1379 bar)
10SM and 20SM Series Medium Pressure Needle Valves
15SM Series Medium Pressure Needle Valves
These valves are a non-rotating rising stem design, working pressures to 20000 psi (1379 bar). Tubing sizes range from 1/4" to 1".Tubing connections utilize Autoclave's cone and thread design. Operating temperatures from -423°F to 1200°F (-252°C to 649°C). 316 stainless steel construction, other options available.

QS Series Valves

15000 psi (1034 bar)
These valves are a non-rotating rising stem design, working pressures to 15,000 psi (1034 bar) in all sizes. Tubing sizes range from 1/4" to 3/4". Tubing connections utilize Autoclave's quick-set single ferrule design in 316 stainless steel construction. Operating temperatures from 0°F to 650°F (-17.8°C to 343°C).

High Pressure Valves

30SC, 43SC, 30VM, 40VM, 60VM, 100VM,150V Series to 150000 psi (10342 bar)
All series are a non-rotating rising stem design, working pressures to 100,000 psi (6895 bar). Tubing sizes range from 1/4" to 1". Tubing connections utilize Autoclave's cone and thread design. Operating temperatures from -423°F to 1200°F (-252°C to 649°C). 316 stainless steel construction standard, other material options available.

Pipe valves

P Series to 15,000 psi (1034 bar)
All series are a non-rotating rising stem design, working pressures to 15,000 psi (10,345 bar). Pipe sizes range from 1/4" to 1". Operating temperatures from 0°F to 400°F (-17°C to 204°C). 316 stainless steel construction, other options available.

Mini Valves

MVE & MV Series Valves to 15000 psi (1034 bar)
These valves are a rotating rising stem design, working pressures to 15,000 psi (1034 bar). Tubing sizes range from 1/16" to 1/8".Tubing connections utilize Autoclave's SpeedBite single-ferrule design. Operating temperatures from 0°F to 650°F (-17.8°C to 343°C). 316 stainless steel construction, other material options available.

Bottle Valves

Low Pressure to 10,000 psi (690 bar)
BTV Series valve design provides male inlet connections from 1/8" to 1/2" NPT. Outlet connections in NPT or tube to 1/4". Rising stem/barstock body design.

Micrometering Valves

VRMM Series Micrometering Valves to 60000 psi (4137 bar)
Valves for precise control of small flows, for pressures up to 60,000 psi (4137 bar). Tubing sizes from 1/8" to 3/8". Operating temperatures from -423°F to 1200°F (-252°C to 649°C). 316 SS construction, other material options available.

Block and Bleed Valves

MVBB Series Block & Bleed Valves to 20000 psi (1379 bar)
Designed for blocking(Isolation), bleeding, and calibration. These valves use a rotating rising stem design rated to 20,000 psi (1379 bar). Tubing size 1/4".Tubing connections utilize the cone and thread design. Operating temperatures from 0°F to 800°F (-17.8°C to 427°C). 316 stainless steel construction, other options available.

Wellhead Gauge and Bleed Valves

Valve Pressures to 30000 (2068 bar)
Autoclave's Wellhead Gauge valves are designed for reliable shut-off service at a maximum working pressure of 30,000 psi (2068 bar). The Wellhead Gauge and Bleed Valves are standard in 316 stainless steel material. Special materials available on request.

Diverter Valves

20DV Series to 20000 psi (1379 bar)
Used to divert flow from inlet to one of two outlets, working pressures to 20,000 psi (1379 bar). Tubing sizes range from 9/16" to 1".Tubing connections utilize Autoclave's coned and thread design. Operating temperatures from -423°F to 1200°F (-252°C to 649°C). 316 stainless steel construction, other material options available.

Yoke Valves

Y Series to 50000 psi (3447 bar)
Extra heavy duty plant-grade rising stem valves with working pressures to 50,000 psi (3447 bar).
Tubing sizes range from 9/16" to 1".Tubing connections utilize Autoclave's coned and threaded design. Operating temperatures from 0°F to 600°F (-17.8°C to 316°C). 316 stainless steel construction, other material options available.

Autoclave高压针阀 详细描述：

Autoclave高压针阀规格
类型：两通阀、三通阀/直线型、角型
最大工作压力：1034.3 MPa
工作温度范围：-423℉ (-252℃) 到1200℉ (649℃)
连接尺寸：英制：1/16”到1-1/2”；公制：10mm到16mm
流通尺寸：0.055”（1.4mm）到0.937”（23.8mm）
材质：316SS

Medium Pressure SM Series Needle Valve with Pressures to 20,000 psi (1379 bar)
针型阀, SM 系列- 20,000 PSI

派克 Autoclave 的SM系列针形阀是非旋转上升式阀杆设计，工作压力可达20,000 psi(1379 bar).管道尺寸从1/4" 到 1-1/2".钢管连接采用派克 Autoclave Engineers 锥形和螺纹设计。

针阀，高压 - VM 系列 100,000 PSI

派克 Autoclave 中压及高压系列针阀可达 100,000 PSI,锥螺纹设计应用于油气过程控制行业。Parker Autoclave's 100VM Series needle valves are a non-rotating rising stem design, with working pressures to 100,000 psi (6895 bar) with ?” to 9/16” ” end connections. These valves are available in 316 Stainless Steel and two body patterns.

SC Series系列高压针型阀

派克 Autoclave 的 SC 系列针阀，适用于中压环境，可承受 43,000 PSI。Parker Autoclave's SC Series needle valves are a non-rotating rising stem design, with working pressures to 43,000 psi (2965 bar). These valves are available in 316 Stainless Steel and utilize the proven autoclave cone and thread connection.

针型阀，管道阀P 系列- 15,000 PSI

派克 Autoclave 阀门中 P 系列的多样化小孔仪表阀在石油和天然气加工工业也有应用.工作压力达到 15,000 PSI，规格范围 "1/4-1"

针型阀，管道阀P 系列- 15,000 PSI P Series NPT Style Needle Valves

派克 Autoclave 阀门中 P 系列的多样化小孔仪表阀在石油和天然气加工工业也有应用.工作压力达到 15,000 PSI，规格范围 "1/4-1"。Pressures to 15,000 psi (1034 bar)

针型阀，迷你隔断 & 排放 MVBB 系列 - 20,000 PSI
Needle Valve,Mini Block and Bleed MVBB Series - 20,000 PSI

设计作用于阻断，截流及校准。阀门为上升式提升阀杆，压力可达 20,000 psi(1379 bar).钢管尺寸1/4".与钢管连接端为锥形接头设计。Parker Autoclave’s MVBB Series is a mini block and bleed valve that is designed for blocking, bleeding, and calibration of instrumentation systems. This valve is a rotating rising stem design, rated to 20,000 psi (1379 bar).
Block and Bleed Needle Valve MVBB Series Block and Bleed Valve to 20,000 psi (1379 bar)

10V系列针型阀- 15,000 PSI

派克 Autoclave 阀门的旋转上升的阀杆设计工作压力能达到 15,000 psi(1034 bar).阀门接口尺寸从"1/8" 到 "1/2"，管路连接利用速度咬合单卡套设计.

针型阀，分配 20DV系列- 20,000 PSI
Needle Valve, Diverter 20DV Series - 20,000 PSI

派克 Autoclave 的 20DV 系列的分配阀在压力 20,000 psi(1379 bar)条件下安全可靠的运行.这款阀门的实际是可以使流体从一个入口流入，分配到两个出口，允许介质直接改变方向或者混合的过程。Diverter Needle Valve 20DV Series Diverter Valves to 20,000 psi (1379 bar)。Parker Autoclave's 20DV Series diverter valves are built to operate safely and reliably up to 20,000 psi (1379 bar). This compact valve is used to divert flow from one inlet to two outlets permitting flow direction change and/or mixing of processes.

气瓶阀，BTV 系列 - 15,000 PSI
Bottle Valve, BTV Series - 15,000 PSI

派克 Autoclave 部门的 BTV 系列阀门接口尺寸从"1/8" 到 "1/2" NPT 外螺纹，这个设计是用于样品瓶和气缸进行远程取样。Parker Autoclave's BTV Series bottle valve is designed with male NPT threaded inlet connections from 1/8" to 1/2" NPT. These compact, bar stock valves are to be used with sample bottles and cylinders for remote sampling.

迷你针型阀，MVE/MV 系列微型针阀 - 15,000 PSI
Mini Needle Valves, MVE/MV Series - 15,000 PSI

派克 Autoclave 的 MVE/MV 迷你型阀门在压力15,000 psi（1,034 bar)的条件下用于实验室和构建安全可靠的操作。Parker Autoclave's MVE/MV Mini Needle Valves are designed for laboratory applications and built for safe reliable operation up to 15,000 psi (1,034 bar).

针型阀，双截断排放阀20DBNV系列- 20,000 PSI
Needle Valve, Double Block and Bleed 20DBNV Series - 20,000 PSI

Parker Autoclave 的 20DBNV 系列是一种三阀块和排放紧凑型系统，专为仪器系统的阻断、排放和校准而设计。该阀门采用非旋转上升杆设计，额定压力为 20,000 psi (1379 bar)。派克 Autoclave 的 20DBNV 系列双截止和排放针阀是一种三系统歧管阀，提供了一种经济且方便的方法来阻断、排放和校准压力变送器和仪表。该阀门采用标准阀门填料和阀杆设计，使其紧凑且易于使用。Parker Autoclave’s 20DBNV Series is a three valve block and bleed compact system that is designed for blocking, bleeding, and calibration of instrumentation systems. This valve is a non-rotating rising stem design, rated to 20,000 psi (1379 bar).

针型阀，Yoke 型 - Y系列 50,000 PSI
Needle Valve, Yoke Style - Y Series 50,000 PSI
针阀，轭式阀 - Y 系列 50,000 PSI | #50Y9872 针导轭式阀

派克 Autoclave 的 Y 系列 Yoke 阀门可安全可靠地工作于 50,000 psi（3447 bar）.Yoke 阀是用于工业和应用的额外重型工厂级仪表阀。 Parker Autoclave's Y Series yoke valves are a non-rotating rising stem design, built to operate safely and reliably to 50,000 psi (3447 bar). Yoke valves are extra heavy-duty, plant grade valves for industrial and severe service applications.

超高压针型阀 - 150V 系列 150,000 PSI
Needle Valve, High Pressure - 150V Series 150,000 PSI
High Pressure Needle Valve

派克 Autoclave 的高压系列针型阀中小孔仪表阀的压力能达到 150,000 PSI，在石油和天然气加工工业上广泛应用.Parker Autoclave's 150V Series needle valves are a non-rotating rising stem design, with working pressures to 150,000 psi ( 10350 bar) with 5/16” ” end connections. These valves are a cylindrical body of high strength 15-5PH Stainless Steel.Part Number 150V5072。30SC, 43SC, 30VM, 40VM, 60VM, 100VM, and 150V Series Needle Valves for operation to 150,000 psi (10345 bar)

针型阀，QS系列 - 15,000 PSI
Needle Valve, QS Series - 15,000 PSI
Quick Set (QS Series) Medium Pressure Needle Valves

派克 Autoclave 阀门采用非旋转上升阀杆设计，全尺寸工作压力均为 15,000 psi（1034 bar）。管道尺寸范围从"1/4" 到 "1"。Parker Autoclave's QS Series needle valves are rated for operation up to 15,000 PSI. The bar stock valve has a non-rotating rising stem design to prevent galling in severe service applications.QS Series Needle Valves with Pressures to 15,000 psi (1034 bar)

针型阀，微计量 - VRMM 系列60,000 PSI
Needle Valve,MicroMetering - VRMM Series 60,000PSI
15SM Medium Pressure Needle Valve

派克 Autoclave 的 VRMM 系列微计量阀用于流体精确计量，工作压力可达 60,000 psi（4137 bar）。Parker Autoclave's VRMM Series micro-metering valves are used for the precise metering of fluids up to 60,000 psi (4137 bar). These bar stock valves are designed with a finely tapered stem that closes in a precisely mated replaceable seat.Medium Pressure SM Series Needle Valve with Pressures to 15,000 psi (1034 bar)Micro-Metering Needle Valve ，VRMM Series, Micro Metering Valves to 60,000 psi (4137 bar)。

针阀，FCNV 系列 - 22,500 PSI
Needle Valve, FCNV Series - 22,500 PSI

派克 Autoclave Engineers 中压针阀接口为 FCC 法兰连接可达 22,500 psi (1,550 bar).Parker Autoclave’s FCNV Series needle valve is specifically designed to interface with the FCC Flared Cone Connection to 22,500 psi (1,550 bar). The needle valves are available to connect with 1/4" to 1” O.D. Parker Autoclave tube sizes.

Autoclave高压针阀型号

30SC16071 43SC1607130VM9071 10V8081 20SM12074 MVE2005
30SC16072 43SC16072 30VM9072 10V2072 20SM12084 MV2005
30SC16081 43SC16081 30VM9073 10V2082 20SM16074 15P2001
30SC16082 43SC16082 30VM9074 10V4072 20SM16084 15P2011
30SC16871 43SC16871 30VM9075 10V4082 10SM9074 15P4071
30SC16872 43SC16872 30VM9081 10V6072 10SM9084 15P4081
30SC16881 43SC16881 30VM9082 10V6082 10SM12074 15P6071
30SC16882 43SC16882 30VM9083 10V8072 10SM1208415P6081

30VM4071 30VM6071 30VM9084 10V8082 10SM16074 15P8071
30VM4072 30VM6072 30VM9085 10V2073 10SM16084 15P8081
30VM4073 30VM6073 30VM9871 10V2083 20SM4872 10P12071
30VM4074 30VM6074 30VM9872 10V4073 20SM4882 10P12081
30VM4075 30VM6075 30VM9873 10V4083 20SM6872 10P16071
30VM4081 30VM6081 30VM9874 10V6073 20SM6882 10P16081
30VM4082 30VM6082 30VM9875 10V6083 20SM9872 15P2002
30VM4083 30VM6083 30VM9881 10V8073 20SM9882 15P2012
30VM4084 30VM6084 30VM9882 10V8083 20SM12872 15P4072
30VM4085 30VM6085 30VM9883 10V2074 20SM12882 15P4082
30VM4871 30VM6871 30VM9884 10V2084 20SM16872 15P6072
30VM4872 30VM6872 30VM9885 10V4074 20SM16882 15P6082
30VM4873 30VM6873 60VM9071 10V4084 10SM9872 15P8072
30VM4874 30VM6874 60VM9072 10V6074 10SM9882 15P8082
30VM4875 30VM6875 60VM9073 10V6084 10SM12872 10P12072
30VM4881 30VM6881 60VM9074 10V8074 10SM12882 10P12082
30VM4882 30VM6882 60VM9075 10V8084 10SM16872 10P16072
30VM4883 30VM6883 60VM9081 10V2873 10SM16882 10P16082
30VM4884 30VM6884 60VM9082 10V2882 20SM4075 15P4073
30VM4885 30VM6885 60VM9083 10V4872 20SM408515P4083

40VM9071 40VM9081 60VM9084 10V4882 20SM6075 15P6073
40VM9072 40VM9082 60VM9085 10V6872 20SM6085 15P6083
40VM9075 40VM9085 60VM9871 10V6882 20SM907515P8073
